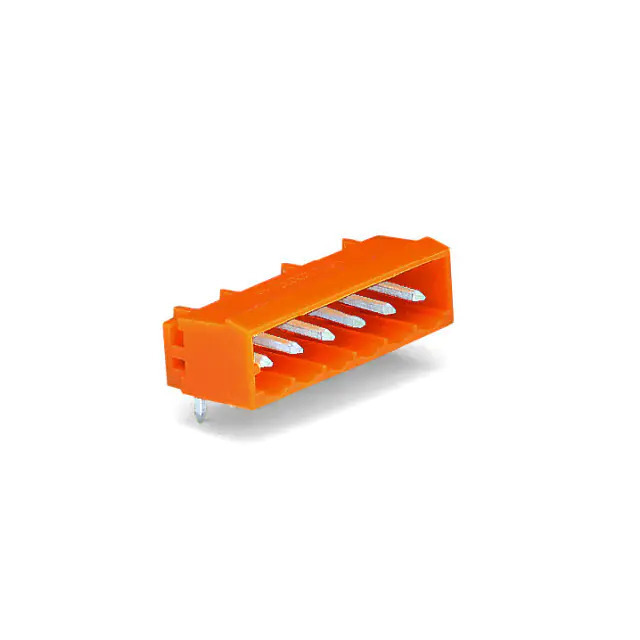

Same model may have multiple batches, images only for reference.
231-532/001-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

231-532/001-000

Part No 231-532/001-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 16A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Orange
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.331" (8.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364642-231-532/001-000
Ultra Librarian 3D Model Ultra Librarian 231-532/001-000 CAD Model

Description

The WAGO Corporation MCSMIDI Classic Header is a male pin shrouded connector with 4 sides.

  • Operating Temperature: -60°C to 100°C
  • Orientation: Vertical
  • Mounting Type: Through Hole
  • Positions: 2-Position
  • Insulation Height: 0.331" (8.40mm)
  • Contact Material: Electrolytic Copper
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Current Rating (IEC): 16A
  • Current Rating (UL): 15A
  • Voltage Rating (UL): 600V
  • Contact Mating Finish: Tin
  • Material Flammability Rating: UL94 V-0
  • Manufacturer: WAGO Corporation
  • Product Status: Active
