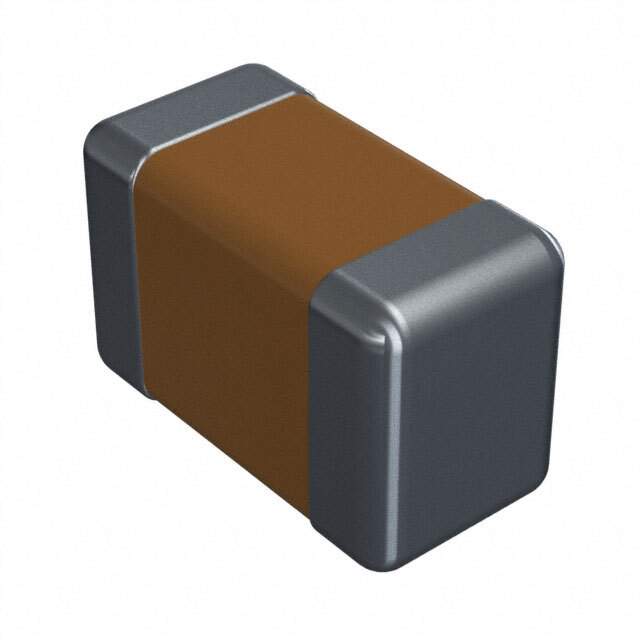

The 0603X225K6R3 is a multilayer ceramic capacitor (MLCC) manufactured by Walsin Technology Corporation. This surface-mount capacitor is designed for general-purpose applications in electronic circuits. The '0603' refers to the EIA case size, 'X' indicates the dielectric material (typically X7R), '225' represents the capacitance value (2.2 µF), 'K' is the tolerance (±10%), and '6R3' represents the voltage rating (6.3V).

Applications

• Bypass capacitors
• Decoupling capacitors
• Filtering
• Smoothing
• Timing circuits

Features

• Multilayer Ceramic Capacitor (MLCC)
• Surface Mount Device (SMD)
• Small Size (0603 Case)
• X7R Dielectric
• RoHS Compliant

Benefits

• Effective Decoupling: Provides localized charge storage, stabilizing voltage supplies for ICs and other components.
• Noise Reduction: Filters unwanted noise and interference from power and signal lines.
• Compact Design: Small 0603 package allows for high-density circuit board layouts.
• Stable Performance: X7R dielectric provides stable capacitance over temperature and voltage variations.
• Environmentally Friendly: RoHS compliant, minimizing the environmental impact of electronic devices.

Additional Details

The 0603X225K6R3 is commonly used in a wide variety of electronic devices, including mobile phones, computers, and consumer electronics. Designers should consult the datasheet for detailed specifications, including capacitance tolerance, temperature coefficient, and voltage rating. Proper soldering techniques are essential to ensure reliable connection to the circuit board. Refer to Walsin's documentation for recommended soldering profiles and handling procedures. The X7R dielectric offers a good balance between capacitance stability and size, making it a popular choice for many general-purpose applications.
