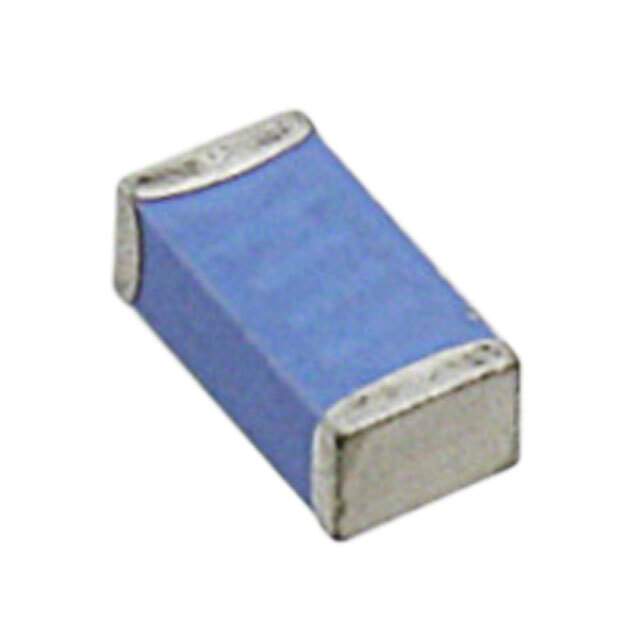

RFANT3216120A5T Real Image
Same model may have multiple batches, images only for reference.

RFANT3216120A5T

Part No RFANT3216120A5T
Manufacturer Walsin Technology Corporation
Catalog RF Antennas
Description 2.4GHZ CERAMIC CHIP ANTENNA
Datasheet
RFANT3216120A5T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 2dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.047" (1.20mm)
Applications Bluetooth, WLAN
Win Source Part Number 027395-RFANT3216120A5T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian RFANT3216120A5T CAD Model

Description

The 027395-RFANT3216120A5T chip antenna from Walsin Technology Corporation is designed for Bluetooth and WLAN applications.

  • Mounting: Surface mount device
  • Frequency Range: 2.4GHz to 2.5GHz
  • Gain: 2dBi
  • VSWR: 2
  • Height: 0.047" (1.20mm)
  • Frequency Group: UHF frequency group (2 GHz to 3 GHz)
  • Package: 2,000 units
  • REACH: Unaffected
  • ECCN: EAR99
