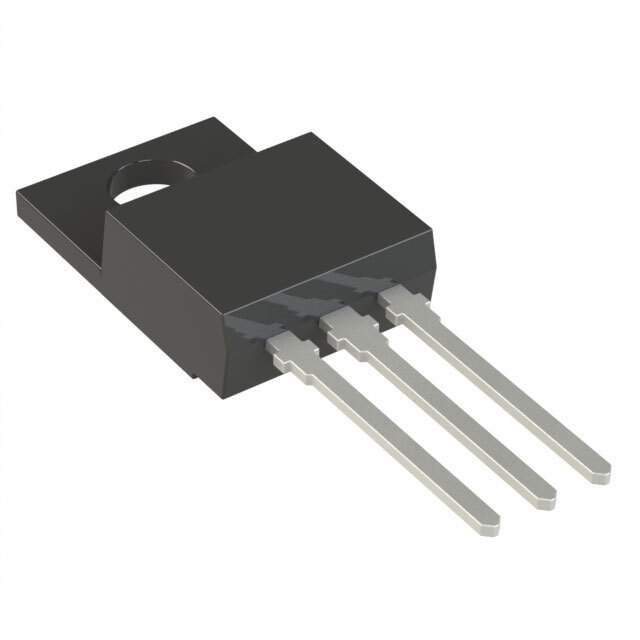

TYN20X-800TFQ Real Image
Same model may have multiple batches, images only for reference.

TYN20X-800TFQ

Part No TYN20X-800TFQ
Manufacturer WeEn Semiconductors
Catalog SCRs - Single
Description SCR 800V 20A TO220F / SCR 800 V 20 A Standard Recovery Through Hole TO-220F
Datasheet
TYN20X-800TFQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors>SCRs
Mfr WeEn Semiconductors
Series -
Package Tube
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Gate Trigger (Igt) (Max) 32 mA
Voltage - On State (Vtm) (Max) 1.5 V
Current - On State (It (AV)) (Max) 12.7 A
Current - On State (It (RMS)) (Max) 20 A
Current - Hold (Ih) (Max) 40 mA
Current - Off State (Max) 1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 210A, 231A
SCR Type Standard Recovery
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package TO-220F
Base Product Number TYN20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 1,000 pcs
Win Source Part Number 1383771-TYN20X-800TFQ
Ultra Librarian 3D Model Ultra Librarian TYN20X-800TFQ CAD Model

Description

The TYN20X-800TFQ is a standard recovery SCR (Silicon Controlled Rectifier) from WeEn Semiconductors.

  • Off-State Voltage: 800V
  • Gate Trigger Voltage: 1.3V
  • Maximum On-State Current (Average): 12.7A
  • Maximum On-State Current (RMS): 20A
  • Mounting Type: Through-hole
  • Package: TO-220-3 full pack with an isolated tab
  • Maximum Operating Temperature: 150°C
  • Non-Repetitive Surge Current (50Hz): 210A
  • Non-Repetitive Surge Current (60Hz): 231A
