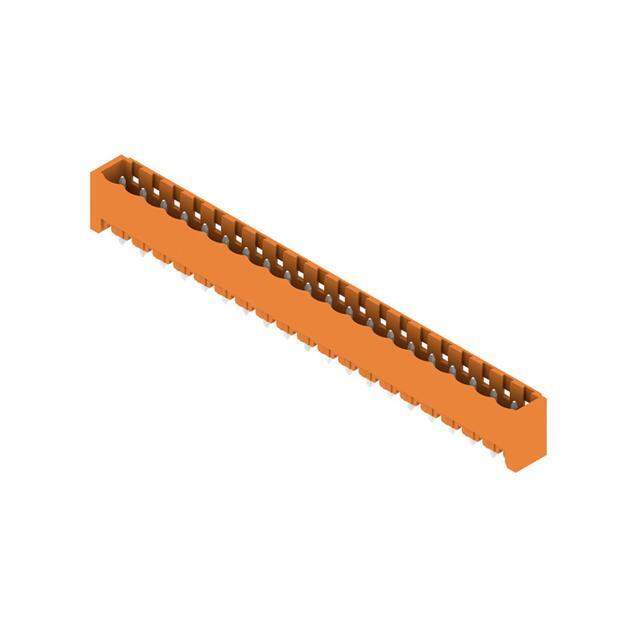

1147140000 Real Image
Same model may have multiple batches, images only for reference.

1147140000

Part No 1147140000
Manufacturer Weidmuller
Catalog Terminal Blocks
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 20
Positions Per Level 20
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 24A
Voltage - IEC 400 V
Current - UL 18.5 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polyamide (PA), Nylon, Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.472" (12.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315731-1147140000
Ultra Librarian 3D Model Ultra Librarian 1147140000 CAD Model

Description

The Omnimate SL 1315731-1147140000 is a connector, interconnect that falls under the category of terminal blocks - headers, plugs and sockets.

  • Connector Type: Male Pin, Shrouded (4 Side) Header
  • Positions Per Level: 20
  • Number of Levels: 20
  • Pitch: 0.200" (5.08mm)
  • Current (IEC): 24A
  • Current (UL): 18.5A
  • Voltage (IEC): 400V
  • Voltage (UL): 300V
  • Package: Bulk
  • Housing Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting Type: Through Hole
  • Operating Temperature: -50°C to 100°C
