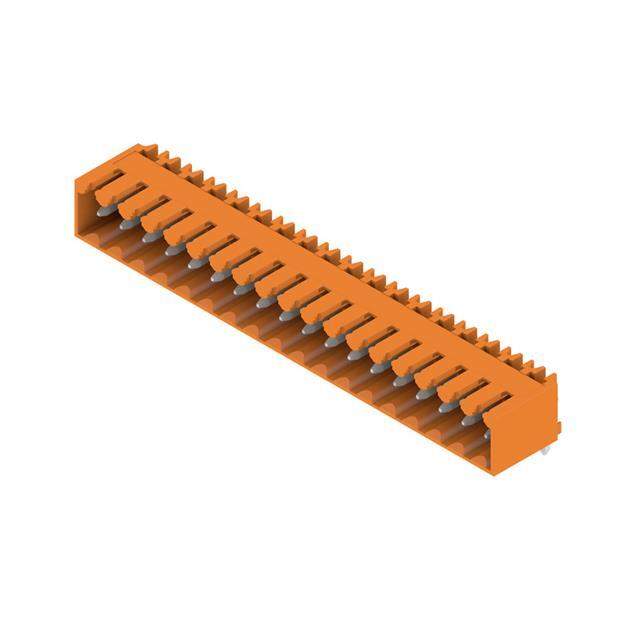

1619390000

Part No 1619390000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 18POS 90DEG 3.5MM / 18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Datasheet
1619390000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Weidmuller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 18
Positions Per Level 18
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 17A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection IP10
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.298" (7.57mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20 pcs
Win Source Part Number 1380543-1619390000
Ultra Librarian 3D Model Ultra Librarian 1619390000 CAD Model

Description

The 1380543-1619390000 is a male header connector from the Omnimate SL series by Weidmuller.

  • Series: Omnimate SL
  • Connector Type: Header, Shrouded
  • Number of Positions: 18
  • Pitch: 0.138" (3.50mm)
  • Number of Rows: 2
  • Mounting Type: Through Hole
  • Orientation: 90° (Right Angle)
  • Termination: Solder
  • Current Rating (IEC): 17A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 320V
  • Voltage Rating (UL): 300V
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Color: Orange
  • Ingress Protection: IP10
  • Operating Temperature: -50°C ~ 100°C
  • Packaging: Bulk
  • Standard Package: 20 pcs
