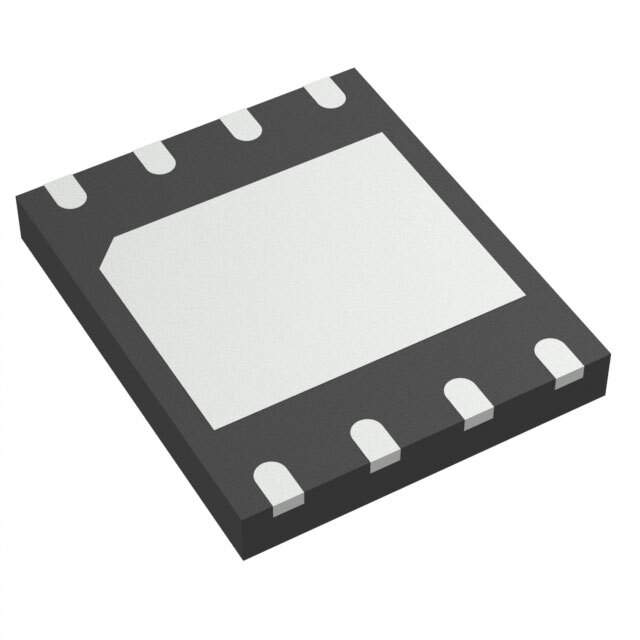

W25Q16DWZPAG Real Image
Same model may have multiple batches, images only for reference.

W25Q16DWZPAG

Part No W25Q16DWZPAG
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH  /  FLASH - NOR Memory IC 16Mb (2M x 8) SPI - Quad I/O, QPI 104 MHz 7 ns 8-WSON (6x5)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tube
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 40µs, 3ms
Access Time 7 ns
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (6x5)
Base Product Number W25Q16
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
Other Names 256-W25Q16DWZPAG
Standard Package 1
Win Source Part Number 1104368-W25Q16DWZPAG
Ultra Librarian 3D Model Ultra Librarian W25Q16DWZPAG CAD Model

Description

The Winbond Electronics W25Q16DWZPAG is a 16Mb (2M x 8) non-volatile memory chip with a clock frequency of 104 MHz.

  • Memory Size: 16Mb (2M x 8)
  • Clock Frequency: 104 MHz
  • Voltage Supply: 1.65V to 1.95V
  • Operating Temperature: -40°C to 105°C
  • Memory Type: FLASH - NOR
  • Memory Format: SPI
  • Write Cycle Time (Word): 40μs
  • Write Cycle Time (Page): 3ms
  • Memory Interface: SPI - Quad I/O, QPI
  • Package/Case Size: 8-WDFN Exposed Pad
  • Supplier Device Package: 8-WSON (6x5)
