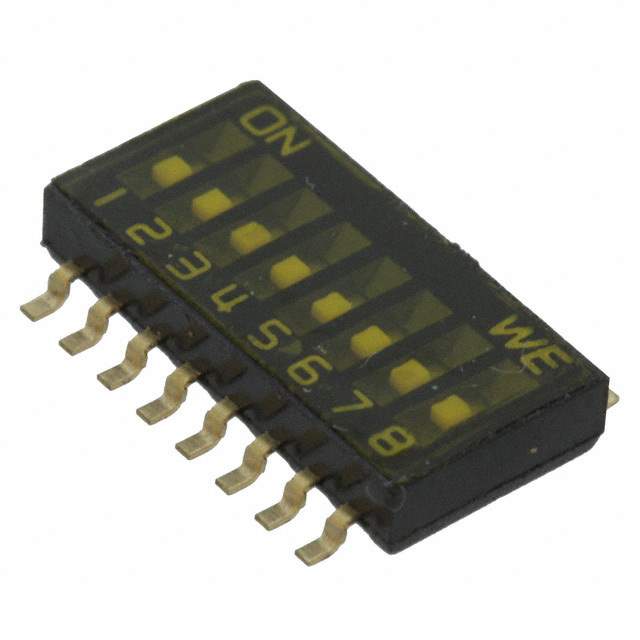

416131160808 Real Image1 416131160808 Real Image2
416131160808 Real Image1 416131160808 Real Image2
Same model may have multiple batches, images only for reference.

416131160808

Part No 416131160808
Manufacturer Wurth Electronics Inc
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
416131160808 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Wurth Electronics Inc
Series WS-DISV
Package Tape & Reel
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material -
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.446" (11.33mm)
Mechanical Life 2,000 Cycles
Electrical Life 1,000 Cycles
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 2,000 pcs
Win Source Part Number 1380811-416131160808
Ultra Librarian 3D Model Ultra Librarian 416131160808 CAD Model

Description

The WS-DISV DIP Switch is a high-quality electronic component designed for use in various applications.

  • Number of Positions: 8
  • Pitch: 0.050" (1.27mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Packaging: Tape-Sealed
  • Voltage Rating: 24VDC
  • Operating Temperature: -40°C ~ 85°C
