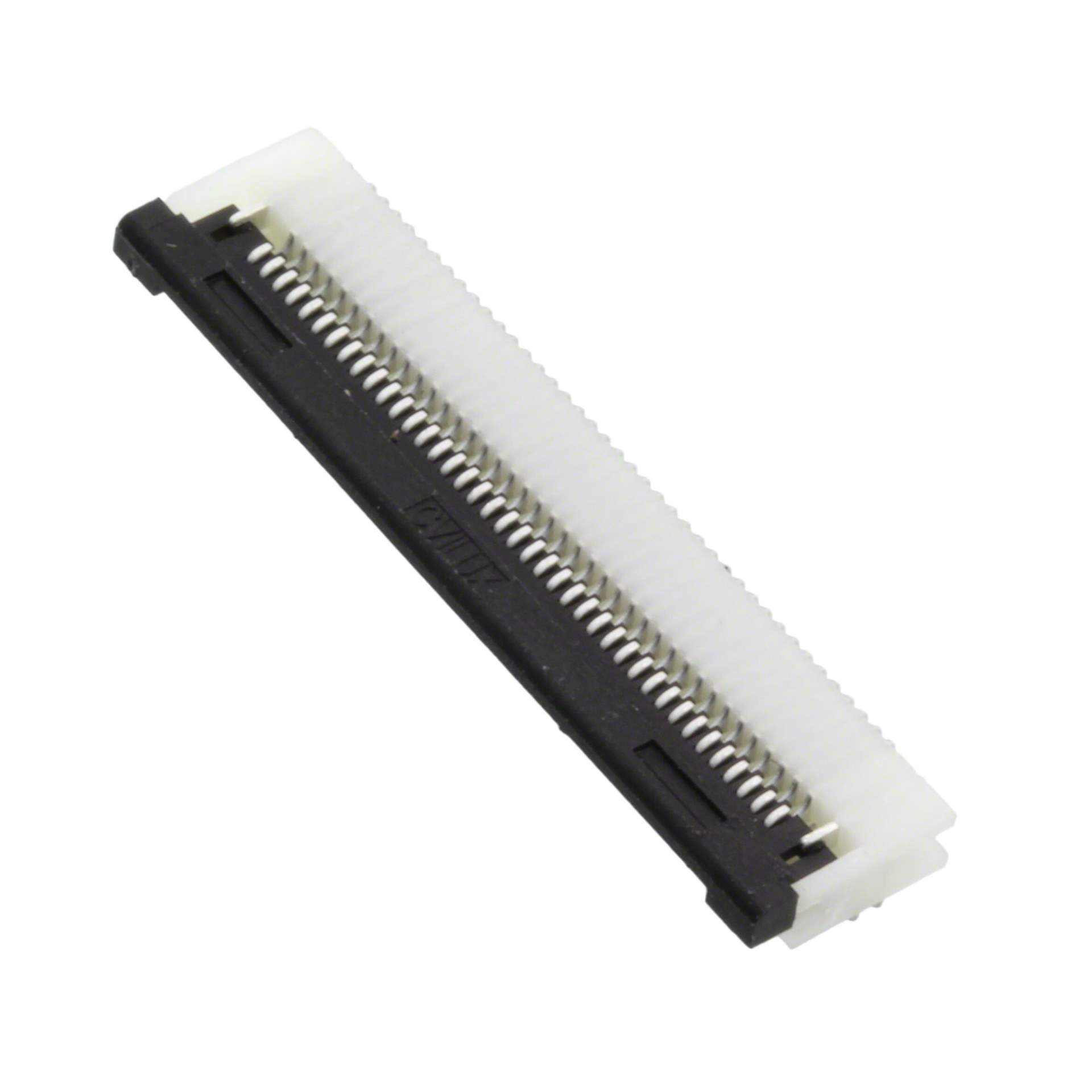

The Würth Elektronik WR-FPC series of connectors from Würth Elektronik is designed for use in FFC/FPC (Flat Flexible) cable assemblies. The WR-FPC connectors are soldered to the PCB and have a pitch of 0.020” (0.50mm) with 40 positions.

• Series: WR-FPC
• Cable Type: FFC/FPC (Flat Flexible)
• Pitch: 0.020” (0.50mm)
• Number of Positions: 40
• Features: Zero Insertion Force (ZIF), Solder Retention
• Cable End Type: Straight
• Locking Type: Flip Lock
• Housing Material: Polyamide (PA6T), Nylon 6T
• Material Flammability Rating: UL94 V-0
• Contact Material: Phosphor Bronze
• Contact Finish: Tin
• Contact Finish Thickness: 120.0μin (3.05μm)
• Voltage Rating: 50V
• Height Above Board: 0.087” (2.20mm)
• Mounting Type: Surface Mount, Right Angle
• Temperature Range: -40°C to 105°C
• Package: Tape and Reel
• Standard Package: 2,000
• Mating Cycle: 20
