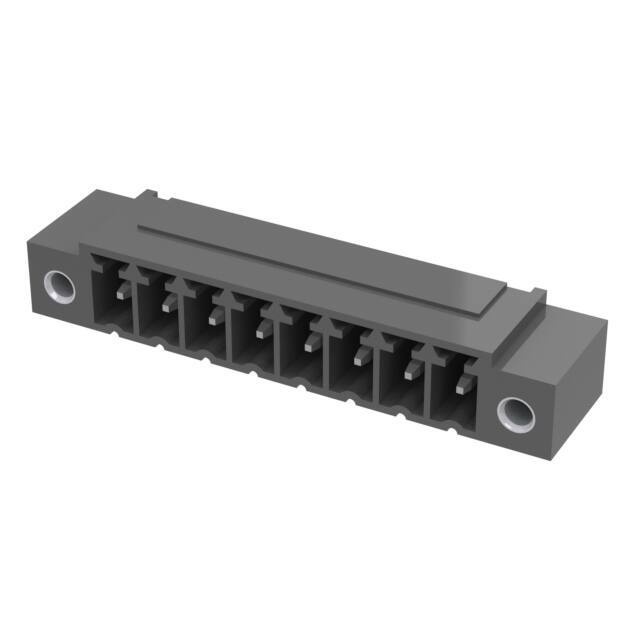

Same model may have multiple batches, images only for reference.

691701350008B

Name: 691701350008B
Brand: Wurth Electronics Inc
SKU: 1377568
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	691701350008B
Manufacturer	Wurth Electronics Inc
Catalog	Headers, Plugs and Sockets
Description	3.81 MM TERMINAL BLOCK HEADER, H
Datasheet	691701350008B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Würth Elektronik
Series	WR-TBL Series 7013B
Package	Tape & Reel (TR)
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	-
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Black
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Contact Tail Length	0.102" (2.60mm)
Insulation Height	0.287" (7.30mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377568-691701350008B
Ultra Librarian 3D Model	Ultra Librarian 691701350008B CAD Model

Alternative Products

Description

The WR-TBL Series 7013B is a header connector manufactured by Würth Elektronik. Würth Elektronik manufactures the WR-TBL Series 7013B.

Type: Male Pin, Shrouded (4 Side)
Positions: 8
Contact Material: Brass
Insulation Height: 0.287 inches (7.30mm)
Current Rating: 10A
Voltage Rating: 300V
Termination Style: Solder
Mounting: Through-Hole
Housing Material: Liquid Crystal Polymer (LCP)
Color: Black
Flammability Rating: UL94 V-0
Pitch: 0.150 inches (3.81mm)
