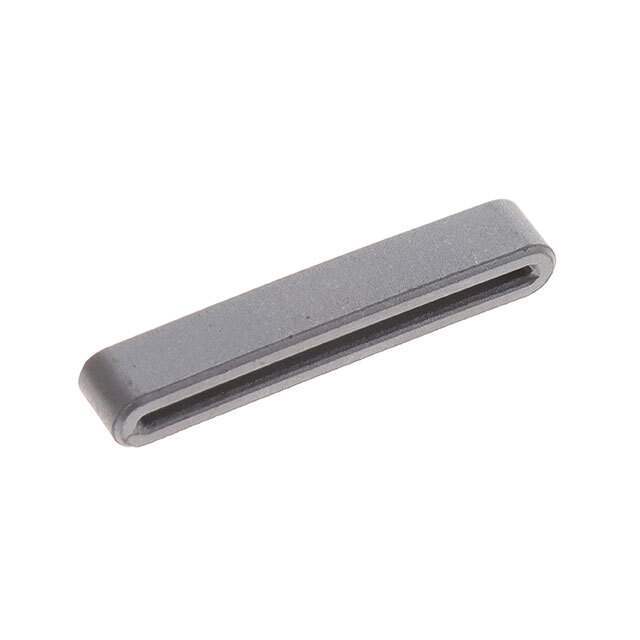

74272141 Würth Elektronik
Same model may have multiple batches, images only for reference.

74272141

Part No 74272141
Manufacturer Wurth Electronics Inc
Catalog Cable Ferrites
Description WE-FLAT FLAT FERRITE CORE
Datasheet
74272141 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209497-74272141
Manufacturer Würth Elektronik
Category Filters-Cable Ferrites
Package Tray
Product Status Active
Type Flat
Design Solid
Impedance @ Frequency 53Ohm @ 100MHz
Material 4W620
Inner Dimension 1.575" W x 0.051" H (40.00mm x 1.30mm)
Outer Dimension 1.780" W x 0.256" H (45.20mm x 6.50mm)
Ultra Librarian 3D Model Ultra Librarian 74272141 CAD Model

Description

Solid Free Hanging Ferrite Core 53Ohm @ 100MHz ID 1.575" W x 0.051" H (40.00mm x 1.30mm) OD 1.780" W x 0.256" H (45.20mm x 6.50mm) Length 0.315" L (8.00mm)
