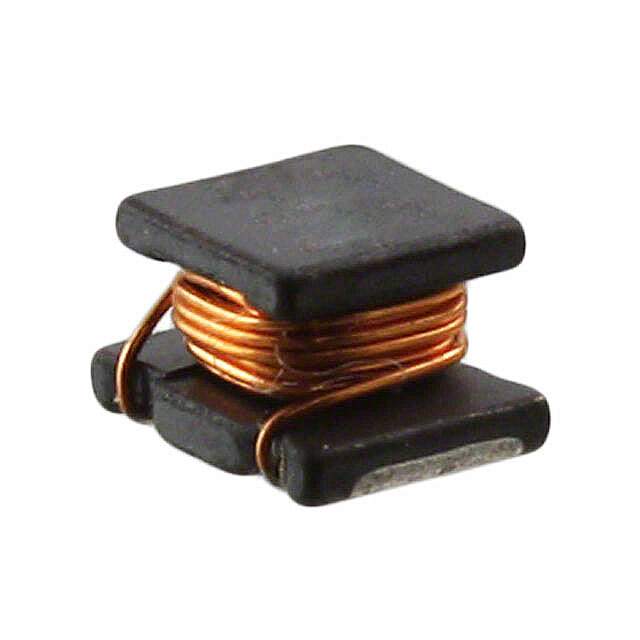

Same model may have multiple batches, images only for reference.

744032331

Name: 744032331
Brand: Wurth Electronics Inc
SKU: 857213
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744032331
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 330UH 65MA 16.5OHM SMD
Datasheet	744032331 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQ
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	330 µH
Tolerance	±10%
Current Rating (Amps)	65 mA
Current - Saturation (Isat)	180mA
Shielding	Unshielded
DC Resistance (DCR)	16.5Ohm Max
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.091" (2.30mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857213-744032331
Ultra Librarian 3D Model	Ultra Librarian 744032331 CAD Model

Alternative Products

Description

The WE-LQ series is a drum core, wirewound inductor designed for various electronic applications.

Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Inductance: 330 μH
Tolerance: ±10%
Shielded: No
Package: Tape & Reel
Mounting: Surface Mount
Core Material: Ferrite
DC Resistance (DCR): 16.5Ohm max
Current Rating: 65 mA
Operating Temperature Range: -40°C to 125°C
Product Status: Active
Manufacturer: Wurth Electronics Inc
