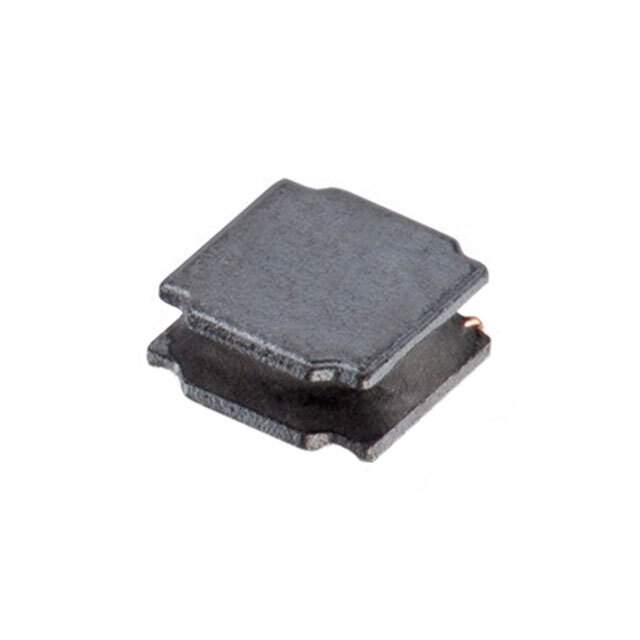

Same model may have multiple batches, images only for reference.

74404020022

Name: 74404020022
Brand: Wurth Electronics Inc
SKU: 857215
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404020022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 960MA 220MOHM SM
Datasheet	74404020022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQS
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	960 mA
Current - Saturation (Isat)	1.4A
Shielding	Semi-Shielded
DC Resistance (DCR)	220mOhm
Frequency - Self Resonant	107MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	SMD
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857215-74404020022
Ultra Librarian 3D Model	Ultra Librarian 74404020022 CAD Model

Alternative Products

Description

The WE-LQS series by Wurth Electronics Inc offers a high-quality fixed inductor with a drum core and wirewound construction.

Mounting: Surface Mount
Packaging: Tape & Reel
Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Inductance: 2.2μH
Maximum Seated Height: 0.039" (1.00mm)
Operating Temperature Range: -40°C to 125°C
Tolerance: ±20%
DC Resistance (DCR): 220mOhm
