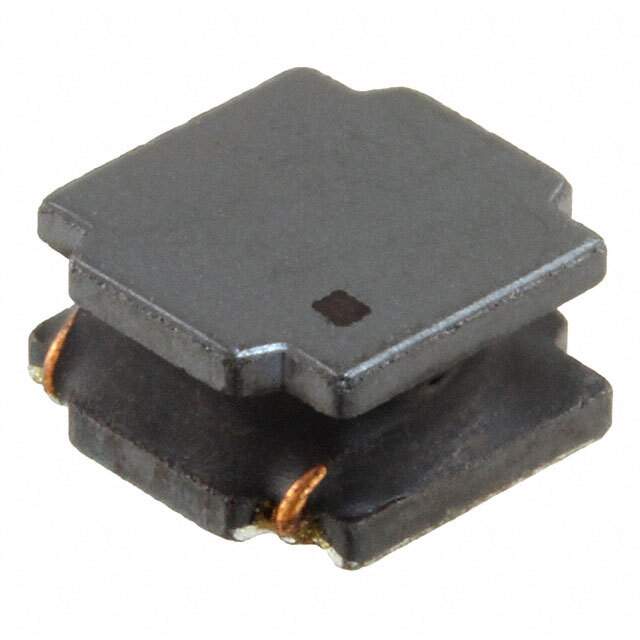

Same model may have multiple batches, images only for reference.

74404084220

Name: 74404084220
Brand: Wurth Electronics Inc
SKU: 857229
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404084220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 2.1A 69 MOHM SMD
Datasheet	74404084220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQS
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	2.1 A
Current - Saturation (Isat)	2.6A
Shielding	Semi-Shielded
DC Resistance (DCR)	69mOhm
Frequency - Self Resonant	9.5MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	8040
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.165" (4.20mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857229-74404084220
Ultra Librarian 3D Model	Ultra Librarian 74404084220 CAD Model

Alternative Products

Description

The WE-LQS series fixed inductor from Wurth Electronics Inc. is a drum core, wirewound inductor designed for a wide range of electronic applications.

Inductance: 22µH
Tolerance: ±20%
Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
Seated Height: 0.165" (4.20mm)
Current Rating: 2.1A
Shielding: Semi-shielded
Package: Tape and reel
Core Material: Ferrite
Operating Temperature Range: -40°C to 125°C
Status: Active
