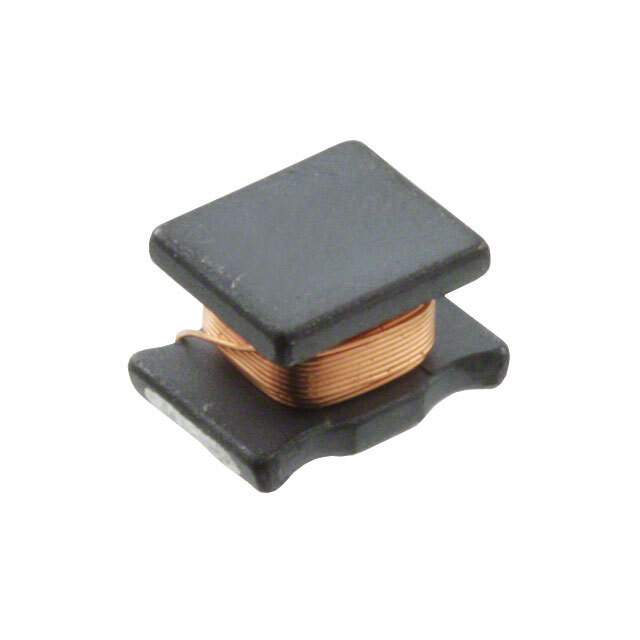

744045215 Real Image
Same model may have multiple batches, images only for reference.

744045215

Part No 744045215
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150UH 220MA 3.7OHM SMD
Datasheet
744045215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQ
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 220 mA
Current - Saturation (Isat) 420mA
Shielding Unshielded
DC Resistance (DCR) 3.7Ohm Max
Q @ Freq 55 @ 796kHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.114" (2.90mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857244-744045215
Ultra Librarian 3D Model Ultra Librarian 744045215 CAD Model

Description

The WE-LQ series from Wurth Electronics Inc is an unshielded drum core, wirewound inductor.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 150 µH
  • Maximum Seated Height: 0.114" (2.90mm)
  • Mounting: Surface mount
  • Package: Tape & reel
  • Tolerance: ±10%
  • DC Resistance (DCR): 3.7Ohm Max
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 220 mA
  • Saturation Current: 420mA
