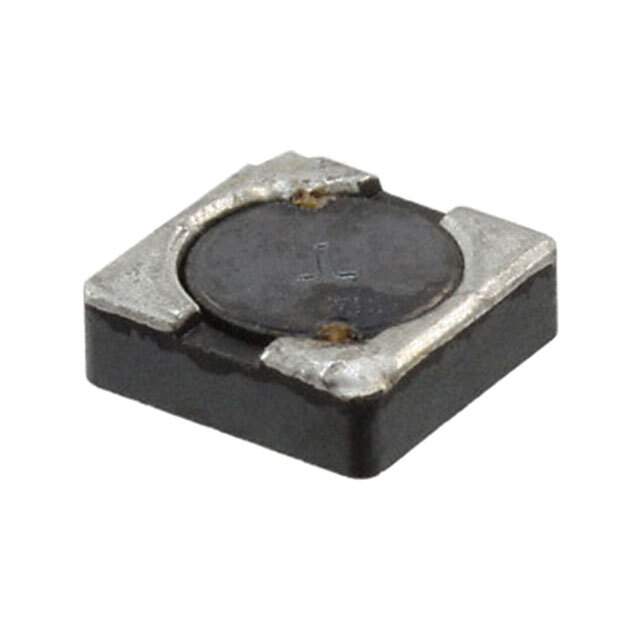

744062101 Real Image
Same model may have multiple batches, images only for reference.

744062101

Part No 744062101
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-TPC | FIXED IND 100UH 550MA 480 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±30%
Current Rating (Amps) 550mA
Current - Saturation 470mA
Shielding Shielded
DC Resistance (DCR) 480mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2727 (6868 Metric)
Parts Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.098" (2.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129889-744062101
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744062101 CAD Model

Description

The Wurth Electronics Inc. 744062101 is a high-quality wirewound inductor that is used in various electronic devices manufactured by Wurth Electronics Inc.

  • Type: shielded
  • Package: reel
  • Inductance: 100μH
  • Tolerance: ±30%
  • DCR: 480mOhm Max
  • Current Rating: 550mA
  • Temperature Range: -40°C to 125°C
  • Supply and demand status: balanced
