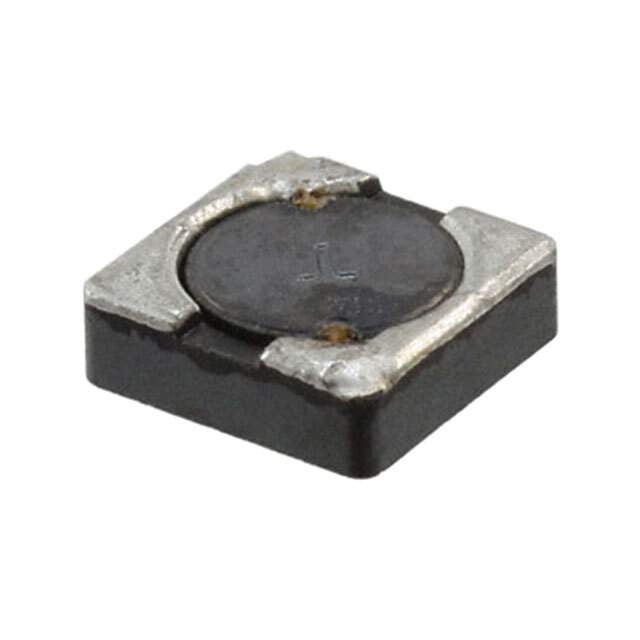

Same model may have multiple batches, images only for reference.

744062680

Name: 744062680
Brand: Wurth Electronics Inc
SKU: 857260
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744062680
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68UH 640MA 360MOHM SMD
Datasheet	744062680 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	640 mA
Current - Saturation (Isat)	500mA
Shielding	Shielded
DC Resistance (DCR)	360mOhm Max
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2727 (6868 Metric)
Size / Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.098" (2.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857260-744062680
Ultra Librarian 3D Model	Ultra Librarian 744062680 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a shielded fixed inductor with a drum core and wirewound construction.

Mounting Type: Surface Mount
Package: Nonstandard
Size: 0.268" L x 0.268" W (6.80mm x 6.80mm)
Maximum Seated Height: 0.098" (2.50mm)
Inductance: 68 μH
Tolerance: ±30%
DC Resistance (DCR): 360mOhm Max
Current Rating: 640 mA
Operating Temperature: -40°C to 125°C
Material: Ferrite
Self-Resonant Frequency: 12MHz
Standard Package: 500 pcs
Product Status: Active
