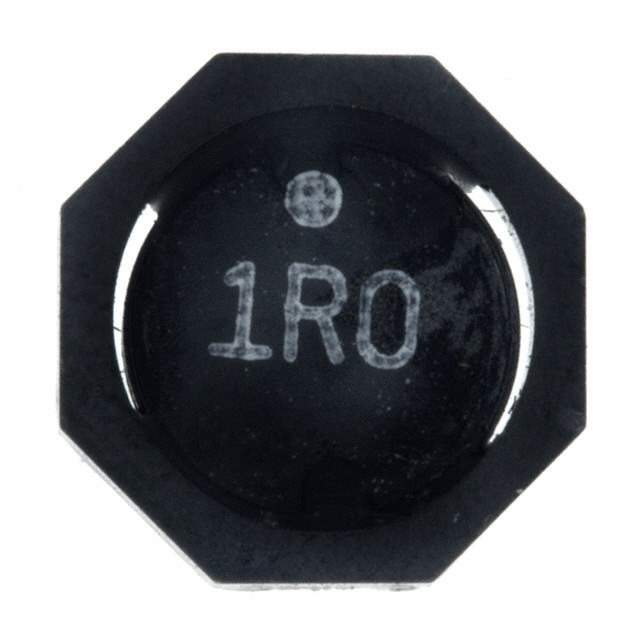

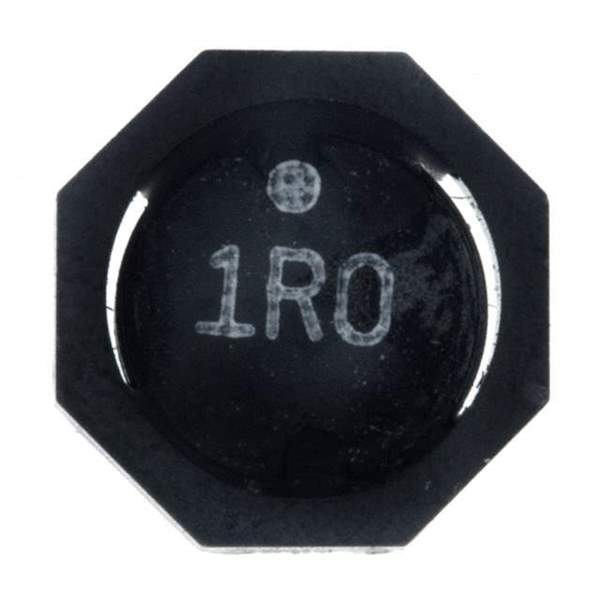

Same model may have multiple batches, images only for reference.

7440650022

Name: 7440650022
Brand: Wurth Electronics Inc
SKU: 857263
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7440650022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 6.2A 15 MOHM SMD
Datasheet	7440650022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±30%
Current Rating (Amps)	6.2 A
Current - Saturation (Isat)	5.9A
Shielding	Shielded
DC Resistance (DCR)	15mOhm Max
Frequency - Self Resonant	65MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857263-7440650022
Ultra Librarian 3D Model	Ultra Librarian 7440650022 CAD Model

Alternative Products

Description

The WE-TPC series is a drum core, wirewound fixed inductor with a size of 0.394" L x 0.394" W (10.00mm x 10.00mm).

Inductance: 2.2 µH
Tolerance: ±30%
Shielding: Shielded
Maximum Seated Height: 0.122" (3.10mm)
Mounting Type: Surface Mount
Package: Nonstandard
DC Resistance (DCR): 15mOhm max
Current Rating: 6.2 A
Operating Temperature: -40°C to 125°C
ECCN: EAR99
Frequency Self-Resonant: 65MHz
Core Material: Ferrite
Package: Tape & Reel
Standard Package: 1,000 pcs
Manufacturer: Wurth Electronics Inc.
Product Status: Active
