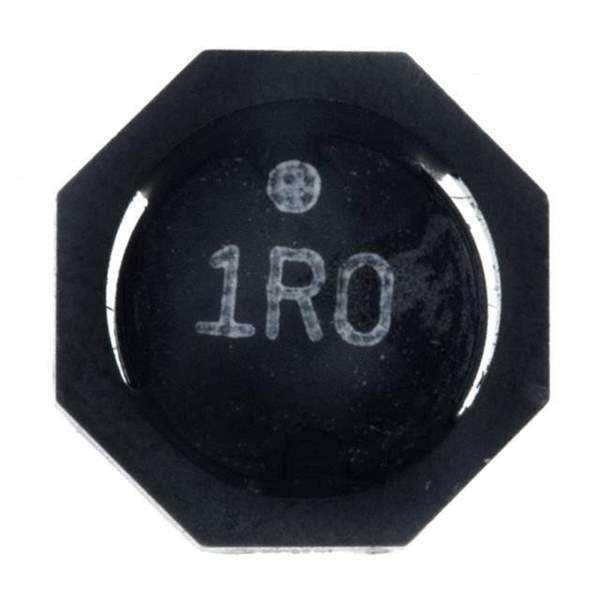

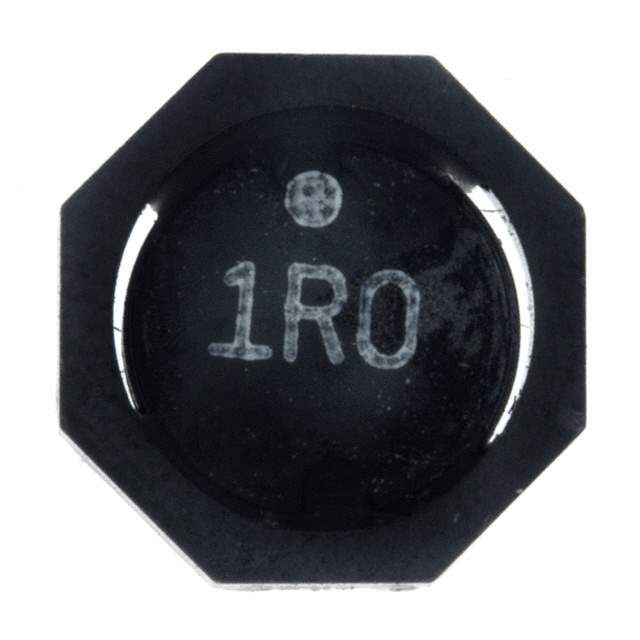

Same model may have multiple batches, images only for reference.

744065221

Name: 744065221
Brand: Wurth Electronics Inc
SKU: 1327741
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	744065221
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 220UH 500MA 1 OHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 500 mA 1Ohm Max Nonstandard
Datasheet	744065221 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±30%
Current Rating (Amps)	500 mA
Current - Saturation (Isat)	550mA
Shielding	Shielded
DC Resistance (DCR)	1Ohm Max
Frequency - Self Resonant	4MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-4095-2,732-4095-1,732-4095-6
Standard Package	1,000
Win Source Part Number	1327741-744065221
Ultra Librarian 3D Model	Ultra Librarian 744065221 CAD Model

Alternative Products

Description

The 744065221 is a fixed inductor from Würth Elektronik.

Type: drum core, wirewound
Shielding: shielded
Inductance: 220 µH
Tolerance: ±30%
Designed to be used in: various electronic devices such as power supplies, EMI filters, and other similar applications
Mounting: surface mount
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height: 0.122" (3.10mm)
Current Rating: 500 mA
DC Resistance (DCR): 1Ohm Max
RoHS3 Compliant: Yes
Standard Package: 1,000
