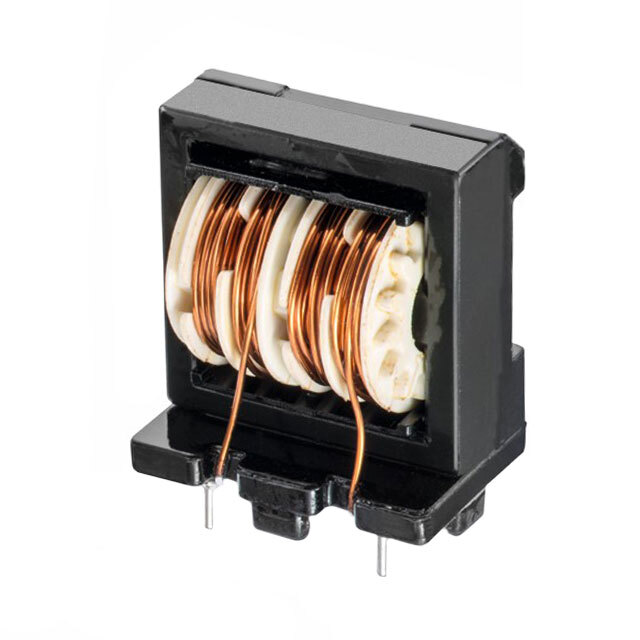

Same model may have multiple batches, images only for reference.
744284101 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

744284101

Part No 744284101
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 100UH 1A 2LN 40 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 40 kOhms @ 4 MHz
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 280mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) 0.413" (10.50mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1507315-744284101
Ultra Librarian 3D Model Ultra Librarian 744284101 CAD Model
