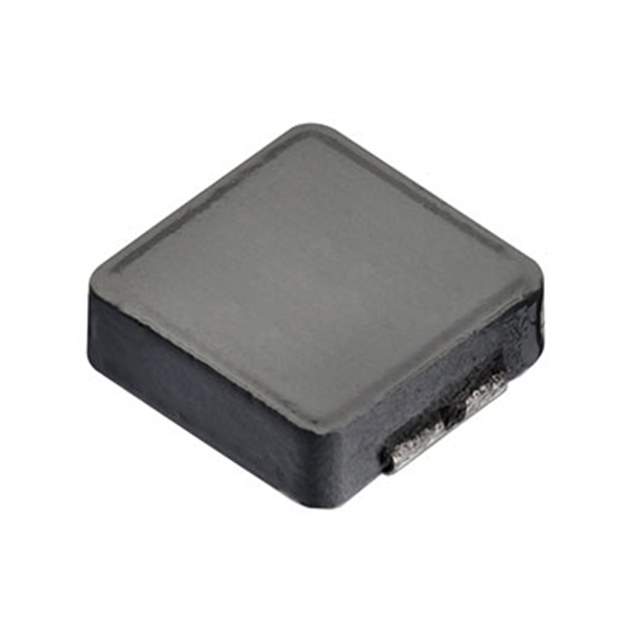

74437321033

Name: 74437321033
Brand: Wurth Electronics Inc
SKU: 857380
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74437321033
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 2.3A 97 MOHM SMD
Datasheet	74437321033 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	2.3 A
Current - Saturation (Isat)	3.9A
Shielding	Shielded
DC Resistance (DCR)	97mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2-SMD
Supplier Device Package	4012
Size / Dimension	0.160" L x 0.160" W (4.06mm x 4.06mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857380-74437321033
Ultra Librarian 3D Model	Ultra Librarian 74437321033 CAD Model

Alternative Products

Description

The WE-LHMI series is a line of molded fixed inductors designed for use in electronic components.

Series: WE-LHMI
Size: 0.160" L x 0.160" W (4.06mm x 4.06mm)
Height: 0.047" (1.20mm)
Inductance: 3.3 µH
Tolerance: ±20%
DC Resistance (DCR): 97mOhm Max
Current Rating: 2.3 A
Core Material: Iron powder
Temperature Range: -40°C to 125°C
Frequency Self-Resonant: 40MHz
Manufacturer: Wurth Electronics Inc
Market Status: Active
