Same model may have multiple batches, images only for reference.

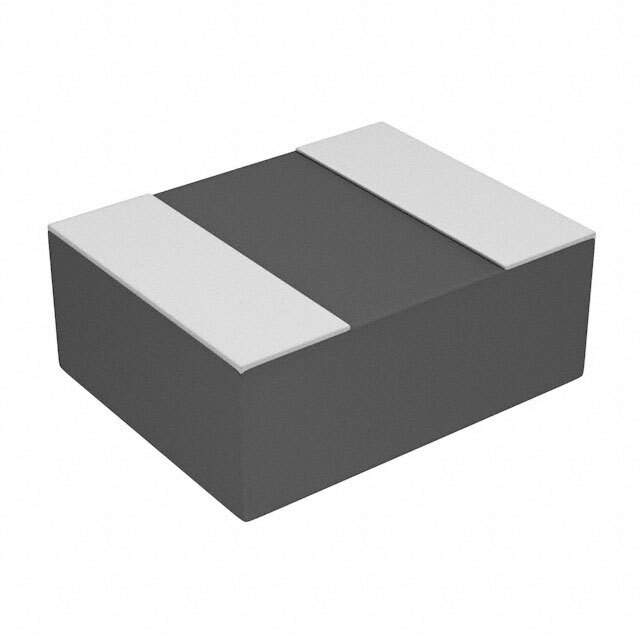

74438323022 Real Image
Same model may have multiple batches, images only for reference.

74438323022

Part No 74438323022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.3A 176MOHM SMD
Datasheet
74438323022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MAPI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 2.5A
Shielding Shielded
DC Resistance (DCR) 176mOhm Max
Frequency - Self Resonant 60MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 2510
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857428-74438323022
Ultra Librarian 3D Model Ultra Librarian 74438323022 CAD Model

Description

The WE-MAPI series is a molded fixed inductor with a size of 0.098" L x 0.079" W (2.50mm x 2.00mm). Wurth Electronics Inc is the manufacturer.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Maximum Seated Height: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Package: 1008 (2520 Metric)
  • DC Resistance (DCR): 176mOhm max
  • Current Rating: 1.3 A
  • Temperature Range: -40°C to 125°C
  • AEC-Q200: Yes
  • Frequency Self-Resonant: 60MHz
  • Core Material: Metal Composite
  • Package: Tape & Reel
  • Standard Package: 3,000 pcs
  • Product Status: Active
