Same model may have multiple batches, images only for reference.

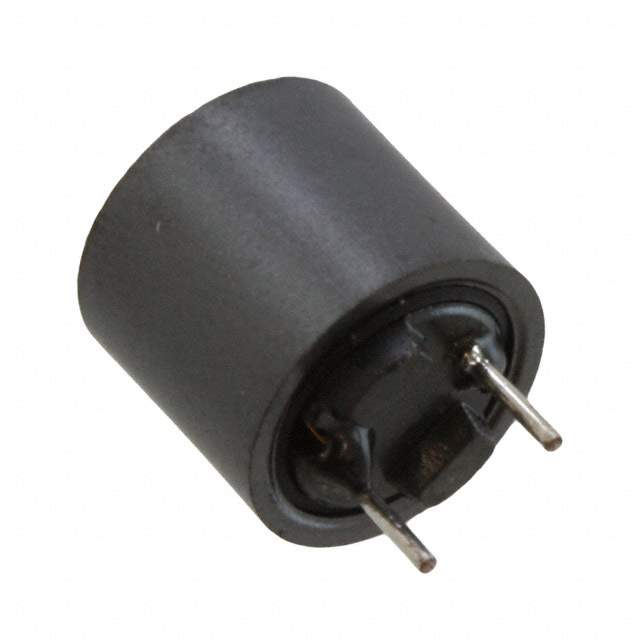

7447471330 Real Image
Same model may have multiple batches, images only for reference.

7447471330

Part No 7447471330
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 33UH 3.6A 61 MOHM TH
Datasheet
7447471330 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TIS
Package Tray
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 3.6 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 61mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.433" Dia (11.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Standard Package 110 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857473-7447471330
Ultra Librarian 3D Model Ultra Librarian 7447471330 CAD Model

Description

The WE-TIS series by Wurth Electronics Inc offers a range of shielded drum core, wirewound fixed inductors suitable for various electronic applications.

  • Win Source Part Number: 857473-7447471330
  • Shielding: Shielded
  • Size: 0.433" Dia (11.00mm)
  • Inductance: 33 µH
  • Maximum Seated Height: 0.453" (11.50mm)
  • Mounting Type: Through-hole
  • Package: Radial, vertical cylinder
  • DC Resistance (DCR): 61mOhm Max
  • Current Rating: 3.6 A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ferrite
  • Self-Resonant Frequency: 10MHz
  • Packaging: Tray
  • Standard Package: 110 pcs
