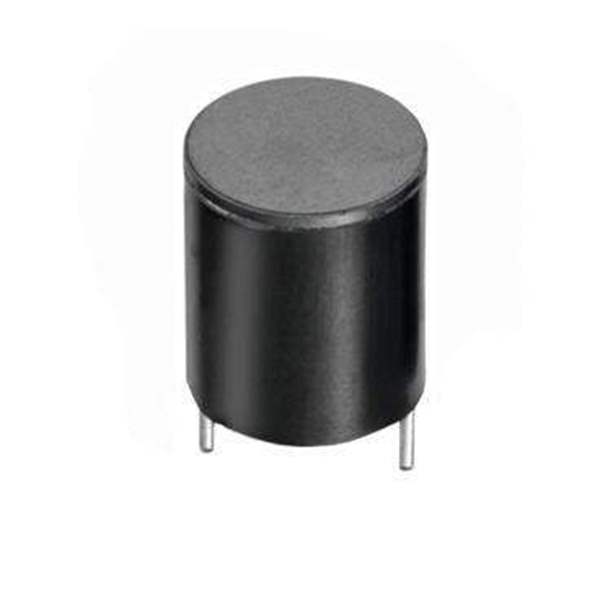

Same model may have multiple batches, images only for reference.

744750460220

Name: 744750460220
Brand: Wurth Electronics Inc
SKU: WS1210681
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744750460220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 6.9A 16 MOHM TH
Datasheet	744750460220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	Cross
Manufacturer	Würth Elektronik
Category	Inductors, Coils, Chokes Fixed Inductors
Product Status	Active
Type	Drum Core, Wirewound
Inductance	22 µH
Tolerance	±20%
Shielding	Shielded
DC Resistance (DCR)	16mOhm Max
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Win Source Part Number	WS1210681-744750460220
Ultra Librarian 3D Model	Ultra Librarian 744750460220 CAD Model

Alternative Products

Description

22 µH Shielded Drum Core, Wirewound Inductor 6.9 A 16mOhm Max Radial, Vertical Cylinder
