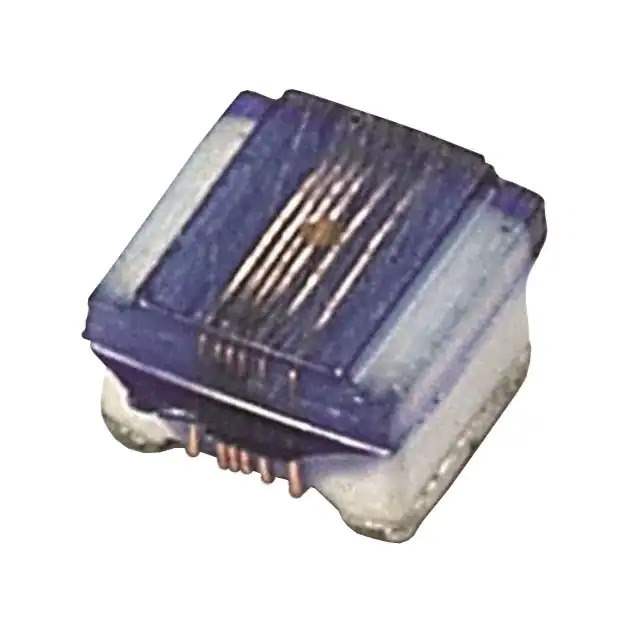

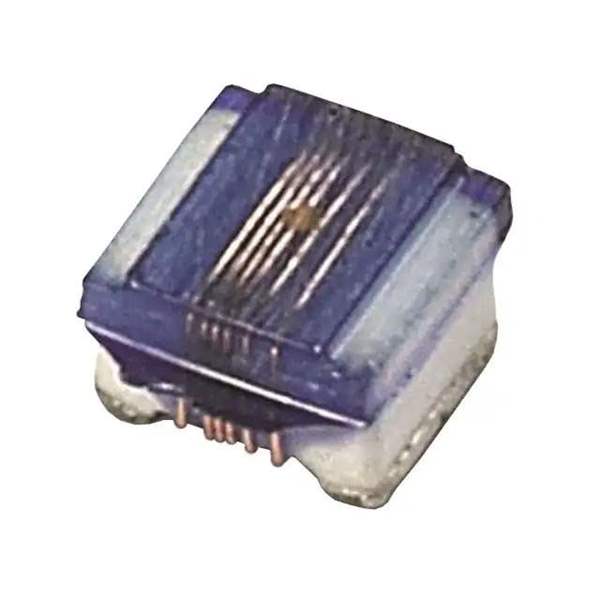

Same model may have multiple batches, images only for reference.

744760122A

Name: 744760122A
Brand: Wurth Electronics Inc
SKU: 857479
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744760122A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22NH 600MA 100MOHM SMD
Datasheet	744760122A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	22 nH
Tolerance	±5%
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	60 @ 500MHz
Frequency - Self Resonant	3.3GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.055" (1.40mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857479-744760122A
Ultra Librarian 3D Model	Ultra Librarian 744760122A CAD Model

Alternative Products

Description

The WE-KI series is a fixed inductor designed with a drum core and wirewound construction. It is manufactured by Wurth Electronics Inc and is currently active in the market.

Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height: 0.055" (1.40mm)
Inductance: 22 nH
Tolerance: ±5%
Q Value: 60 @ 500MHz frequency
Self-Resonant Frequency: 3.3GHz
Shielding: Unshielded
Mounting: Surface mount
Package: Tape & reel
Standard Package: 2,000 pcs
Operating Temperature Range: -40°C to 125°C
