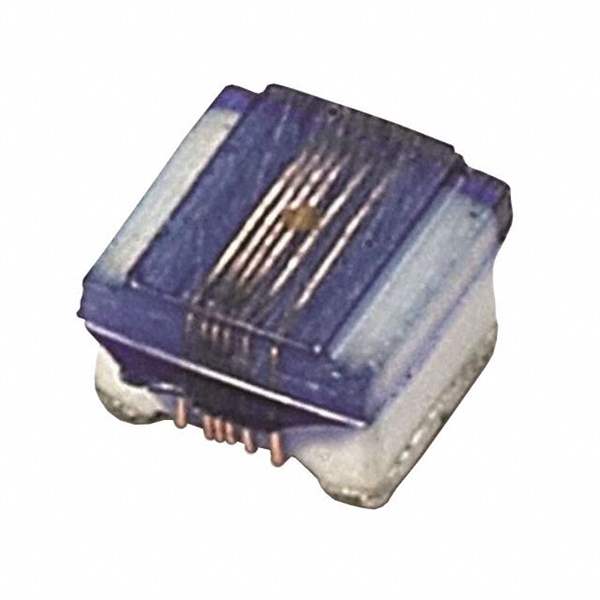

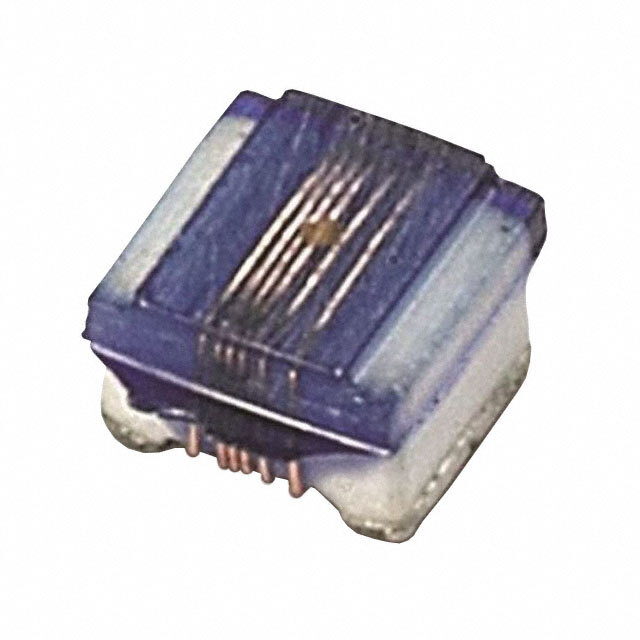

Same model may have multiple batches, images only for reference.

744760147A

Name: 744760147A
Brand: Wurth Electronics Inc
SKU: 802118
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744760147A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 47NH 500MA 150MOHM SMD
Datasheet	744760147A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	47 nH
Tolerance	±5%
Current Rating (Amps)	500 mA
Shielding	Unshielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	60 @ 500MHz
Frequency - Self Resonant	1.7GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	200 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.055" (1.40mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	802118-744760147A
Ultra Librarian 3D Model	Ultra Librarian 744760147A CAD Model

Alternative Products

Description

The WE-KI series from Wurth Electronics Inc. offers high-quality fixed inductors suitable for various electronic applications.

Inductor Type: Drum Core, Wirewound
Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Inductance: 47 nH
Tolerance: ±5%
Shielding: Unshielded
Packaging: Tape & Reel
Maximum Seated Height: 0.055" (1.40mm)
DC Resistance (DCR): 150mOhm Max
Current Rating: 500 mA
Mounting Type: Surface Mount
Operating Temperature: -40°C to 125°C
AEC-Q200 Rated: Yes
