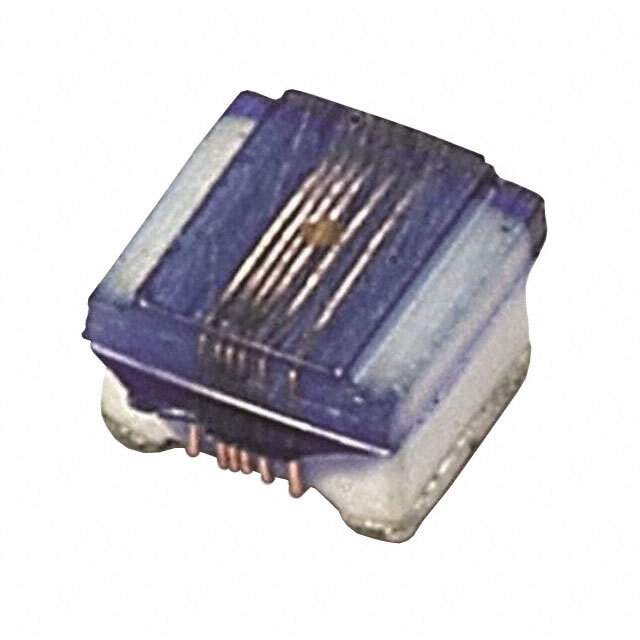

Same model may have multiple batches, images only for reference.

744761068A

Name: 744761068A
Brand: Wurth Electronics Inc
SKU: 1094311
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744761068A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.8NH 700MA 110MOHM SM / 6.8 nH Unshielded Drum Core, Wirewound Inductor 700 mA 110mOhm Max 0603 (1608 Metric)
Datasheet	744761068A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-KI
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	6.8 nH
Tolerance	±5%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	110mOhm Max
Q @ Freq	30 @ 250MHz
Frequency - Self Resonant	5.8GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Dimension	0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max)	0.049" (1.25mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	732-14048-6,732-14048-1,732-14048-2
Standard Package	3,000
Win Source Part Number	1094311-744761068A
Ultra Librarian 3D Model	Ultra Librarian 744761068A CAD Model

Alternative Products

Description

The Würth Elektronik WE-KI series fixed inductor is a drum core, wirewound type with a tolerance of ±5%. The manufacturer is Würth Elektronik.

Type: drum core, wirewound
Tolerance: ±5%
Package: tape and reel
Shielding: unshielded
Inductance: 6.8 nH
Q @ Freq: 30 @ 250MHz
Frequency Self-Resonant: 5.8GHz
DC Resistance (DCR): 110mOhm Max
Current Rating (Amps): 700 mA
Inductance Frequency - Test: 250 MHz
RoHS Compliant: Yes
MSL Level: 1 (Unlimited)
Mounting: SMD (SMT)
Temperature Range: -40°C to 125°C
Dimension: 0.063" L x 0.041" W (1.60mm x 1.05mm)
