744762256A
Same model may have multiple batches, images only for reference.

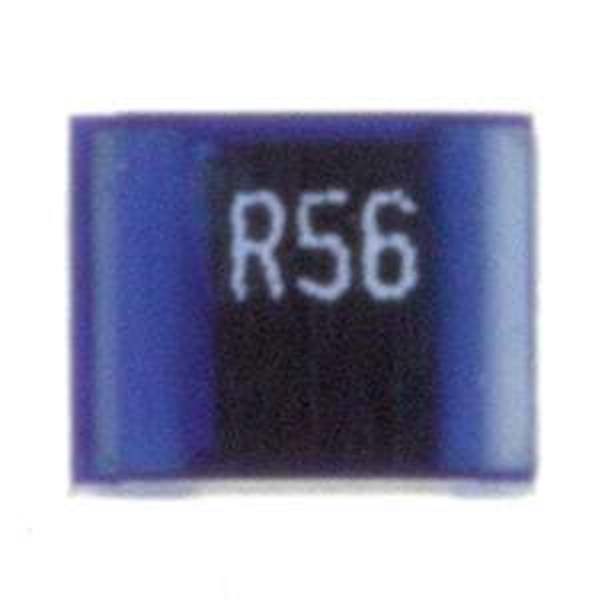

744762256A

Part No 744762256A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 560NH 310MA 1.5OHM SMD
Datasheet
744762256A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-KI
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 560 nH
Tolerance ±5%
Current Rating (Amps) 310 mA
Shielding Unshielded
DC Resistance (DCR) 1.5Ohm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 430MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max) 0.075" (1.90mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857505-744762256A
Ultra Librarian 3D Model Ultra Librarian 744762256A CAD Model

Description

The WE-KI series fixed inductor from Wurth Electronics Inc. is a drum core, wirewound inductor.

  • Inductance: 560nH
  • Tolerance: ±5%
  • Size: 0.102" L x 0.083" W (2.60mm x 2.10mm)
  • Height: 0.075" (1.90mm)
  • Current Rating: 310mA
  • Package: Tape and reel
  • Shielding: Unshielded
  • Core Material: Ceramic
  • AEC-Q200 Rated: Yes
  • Self-Resonant Frequency: 430MHz
