Same model may have multiple batches, images only for reference.

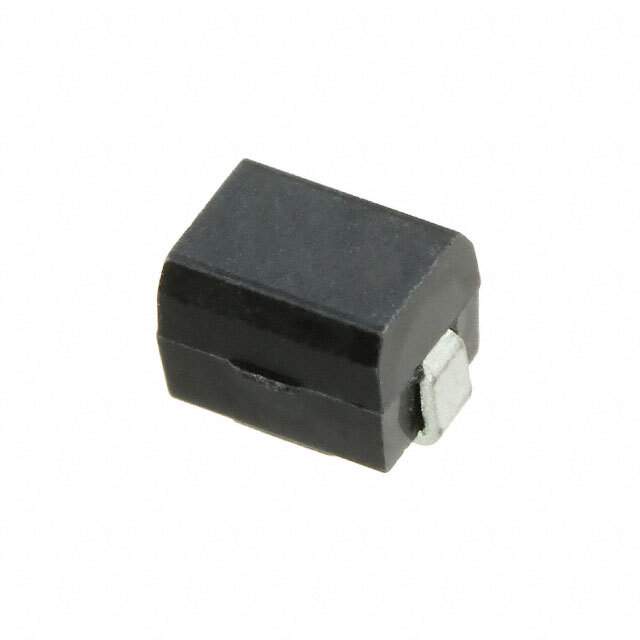

7447669112 Real Image
Same model may have multiple batches, images only for reference.

7447669112

Part No 7447669112
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-GFH High Frequency SMD Inductor | FIXED IND 12UH 810MA 465 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Material - Core Iron Powder
Inductance 12μH
Tolerance ±10%
Current Rating (Amps) 810mA
Shielding Unshielded
DC Resistance (DCR) 465mOhm Max
Q at Freq 35 at 1.06MHz
Frequency - Self Resonant 31MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1.06MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.134" (3.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130037-7447669112
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7447669112 CAD Model

Description

The Wurth Electronics Inc. inductor is a high-quality surface-mount inductor that is unshielded and has a 12μH inductance.

  • Inductance: 12μH
  • Material: Iron Powder
  • Tolerance: ±10%
  • Frequency Self-Resonant: 31MHz
  • DC Resistance: 465mOhm Max
  • Package: Reel
  • Height: 0.134" (3.40mm)
  • Q @ Freq: 35 @ 1.06MHz
  • Current Rating: 810mA
  • Temperature Range: -40°C ~ 125°C
  • Manufacturer: Wurth Electronics Inc.
