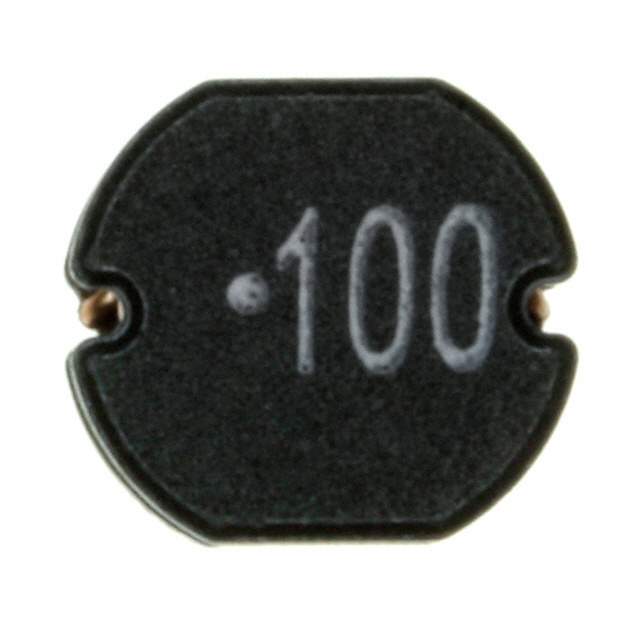

Same model may have multiple batches, images only for reference.

74477510

Name: 74477510
Brand: Wurth Electronics Inc
SKU: 808406
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74477510
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 2.3A 70 MOHM SMD / POWER-CHOKE WE-PD2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±10%
Current Rating (Amps)	2.3A
Current - Saturation	2.95A
Shielding	Unshielded
DC Resistance (DCR)	70mOhm Max
Frequency - Self Resonant	28MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum)	0.217" (5.50mm)
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	808407-74477510
Ultra Librarian 3D Model	Ultra Librarian 74477510 CAD Model

Alternative Products

Description

The Würth Elektronik 74477510 is a high-quality wirewound inductor that is suitable for use in various electronic devices.

Mounting Style: SMD
Shielding: Unshielded
Inductance: 10μH
Tolerance: ±10%
Core Material: Ferrite
Current Saturation: 2.95A
DC Resistance (DCR): 70mOhm Max
Temperature Range: -40°C to 125°C
