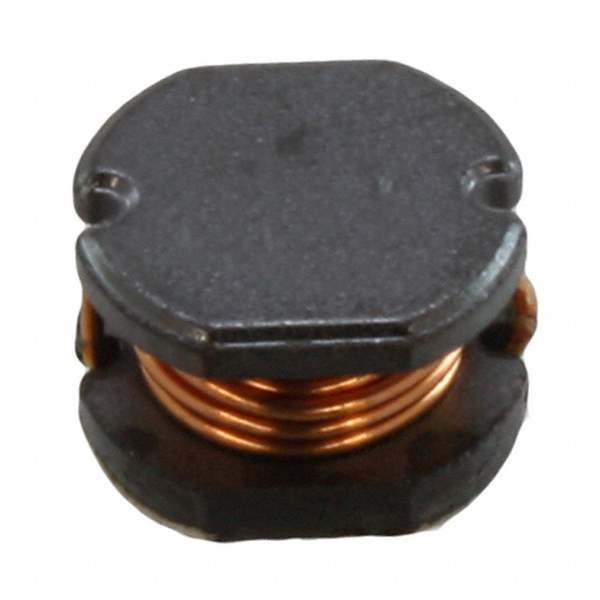

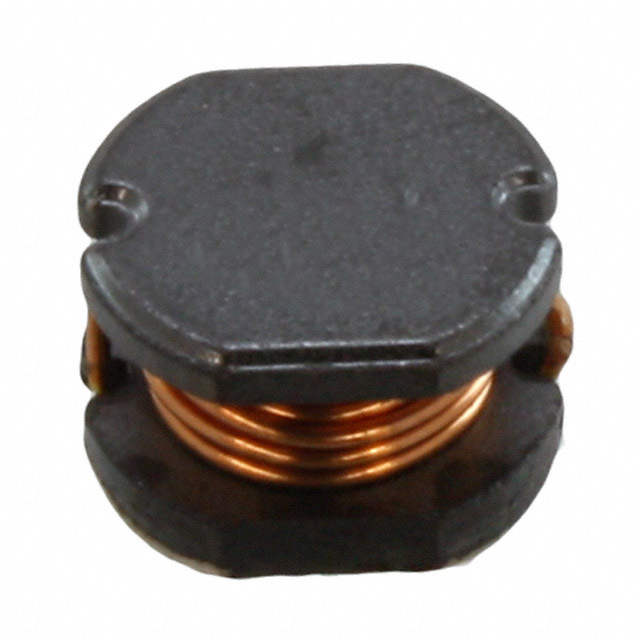

744775156 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

744775156

Part No 744775156
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description 56 µH Unshielded Drum Core, Wirewound Inductor 1.04 A 240mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Würth Elektronik
Series WE-PD2
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 1.04 A
Current - Saturation (Isat) 1.14A
Shielding Unshielded
DC Resistance (DCR) 240mOhm Max
Frequency - Self Resonant 10.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1478774-744775156
Ultra Librarian 3D Model Ultra Librarian 744775156 CAD Model
