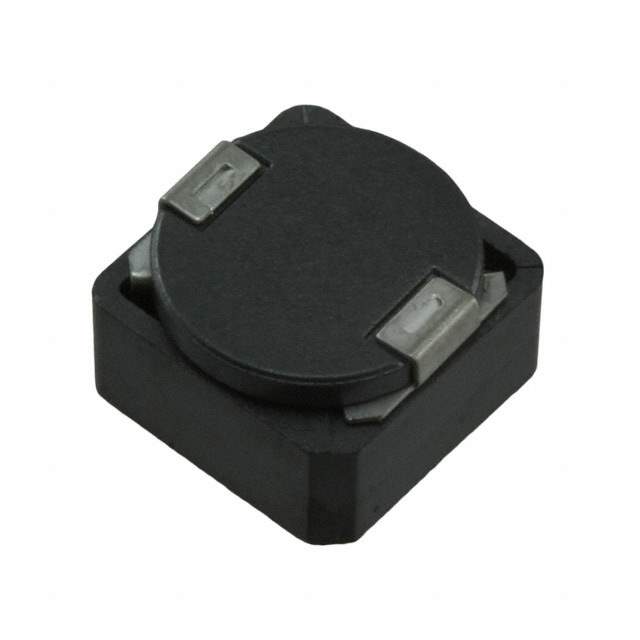

7447798151 Real Image1 7447798151 Real Image2
Same model may have multiple batches, images only for reference.
7447798151 Real Image1 7447798151 Real Image2
7447798151 Real Image1 7447798151 Real Image2
Same model may have multiple batches, images only for reference.

7447798151

Part No 7447798151
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 5.45A 25.8MOHM SM / 15 µH Shielded Drum Core, Wirewound Inductor 5.45 A 25.8mOhm Max Nonstandard
Datasheet
7447798151 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PDF
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 5.45 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 25.8mOhm Max
Q @ Freq -
Frequency - Self Resonant 19MHz
Ratings -
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.252" (6.40mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381121-7447798151
Ultra Librarian 3D Model Ultra Librarian 7447798151 CAD Model

Description

The WE-PDF series is a drum core, wirewound inductor designed for various electronic applications. It is manufactured by Wurth Electronics Inc.

  • Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Height: 0.252" (6.40mm)
  • Inductance: 15 µH
  • Tolerance: ±20%
  • Shielding: Shielded
  • DC Resistance (DCR): 25.8mOhm max
  • Current Rating: 5.45 A
  • Operating Temperature: -40°C to 150°C
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
