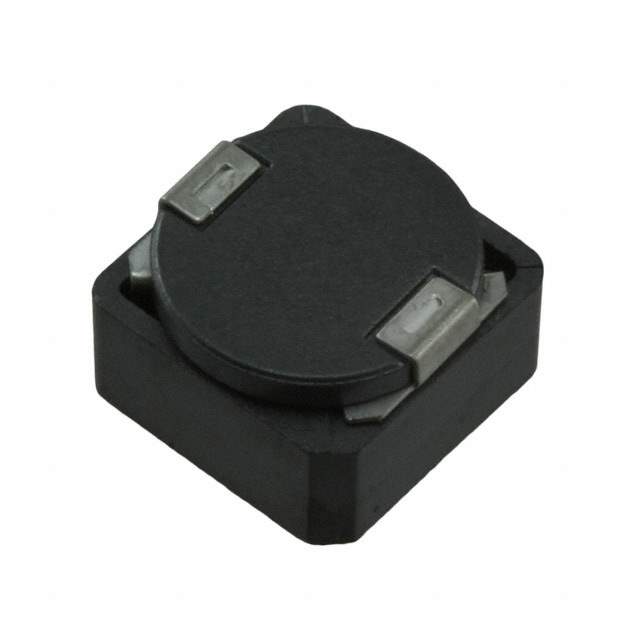

7447798271 Real Image
Same model may have multiple batches, images only for reference.

7447798271

Part No 7447798271
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 27UH 4.3A 42.5MOHM SMD
Datasheet
7447798271 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PDF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 27 µH
Tolerance ±20%
Current Rating (Amps) 4.3 A
Current - Saturation (Isat) 3.1A
Shielding Shielded
DC Resistance (DCR) 42.5mOhm Max
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.252" (6.40mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 851309-7447798271
Ultra Librarian 3D Model Ultra Librarian 7447798271 CAD Model

Description

The WE-PDF series from Wurth Electronics Inc is a drum core, wirewound inductor.

  • Type: Shielded Inductor
  • Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Inductance: 27 µH
  • Tolerance: ±20%
  • Height: 0.252" (6.40mm) Max
  • DC Resistance (DCR): 42.5mOhm Max
  • Operating Temperature: -40°C to 150°C
  • Current Rating: 4.3 A
  • Saturation Current (Isat): 3.1A
  • Mounting Type: Surface Mount
  • Package: Nonstandard
