Same model may have multiple batches, images only for reference.

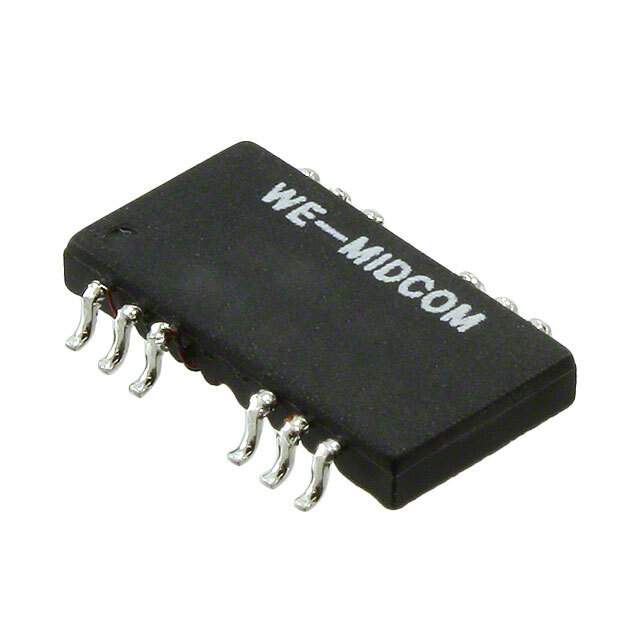

749020100 Real Image
Same model may have multiple batches, images only for reference.

749020100

Part No 749020100
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER LAN 10/100/1000 SMD / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
749020100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Last Time Buy
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.264" W (12.83mm x 6.70mm)
Height - Seated (Max) 0.085" (2.16mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857643-749020100
Ultra Librarian 3D Model Ultra Librarian 749020100 CAD Model

Description

The WE-LAN series from Wurth Electronics Inc is a pulse transformer designed for use in LAN 10/100/1000 Base-T applications.

  • Size: 0.505" L x 0.264" W (12.83mm x 6.70mm)
  • Height: 0.085" (2.16mm)
  • Inductance: 350 µH
  • Mounting Type: Surface Mount
  • REACH: Unaffected
