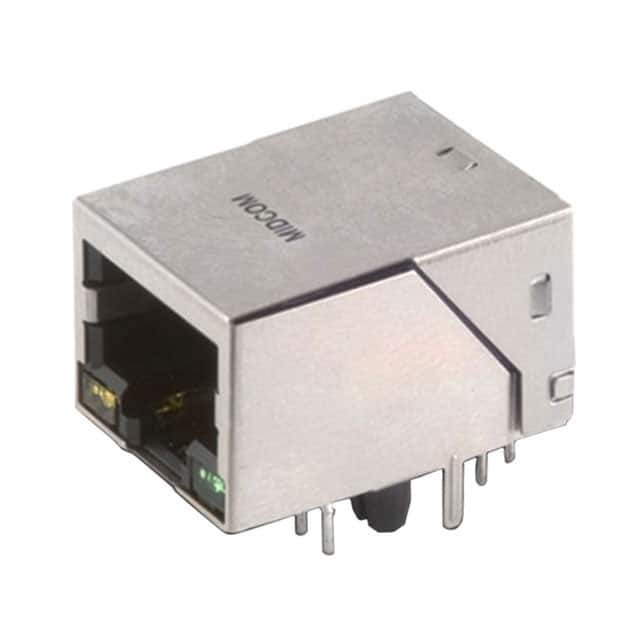

7499111614A
Same model may have multiple batches, images only for reference.

7499111614A

Part No 7499111614A
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
7499111614A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Wurth Electronics Inc
Series WE-RJ45 LAN
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.546" (13.87mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 12
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 28 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857652-7499111614A
Ultra Librarian 3D Model Ultra Librarian 7499111614A CAD Model

Description

The WE-RJ45 LAN series from Wurth Electronics Inc is a modular connector jack with magnetics.

  • Connector Type: RJ45
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • Mounting Type: Through Hole
  • Angle: 90° (Right)
  • Height Above Board: 0.546" (13.87mm)
  • Number of Cores per Jack: 12
  • Temperature Range: -40°C to 85°C
  • Rated For: 10/100/1000 Base-T, AutoMDIX applications
  • Package: 28 pcs
  • REACH: Unaffected
