Same model may have multiple batches, images only for reference.

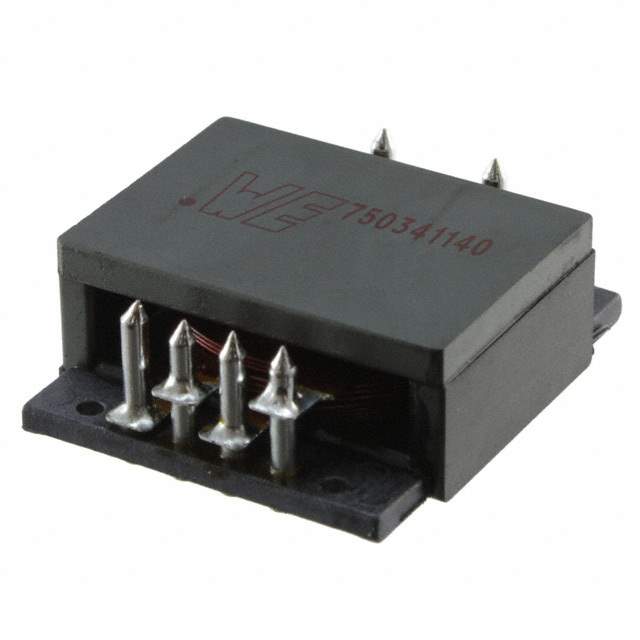

750341140 Real Image
Same model may have multiple batches, images only for reference.

750341140

Part No 750341140
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER PLANAR 300UH SMD
Datasheet
750341140 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 34 Weeks
Features Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 500VDC Isolation 200 ~ 700kHz Surface Mount
Manufacturer Wurth Electronics Inc
Series WE-FW, MID-PLN
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Part Number 732-4449-6, 732-4449-2, 732-4449-1
Quantity per package 115
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908359-750341140
Ultra Librarian 3D Model Ultra Librarian 750341140 CAD Model

Description

The 908359-750341140 is a transformer from the WE-FW, MID-PLN series of Wurth Electronics Inc.

  • Mounting Style: Surface-Mount
  • Operating Temperature Range: -40°C to 125°C
  • Isolation: 500VDC
  • Application: Forward, push-pull converters for DC/DC converters SMPS transformer
  • Packaging: Reel
  • Quantity per Package: 115
  • HTSUS: 8504.31.4065
  • Base Product Number: WE-FW, MID-PLN
