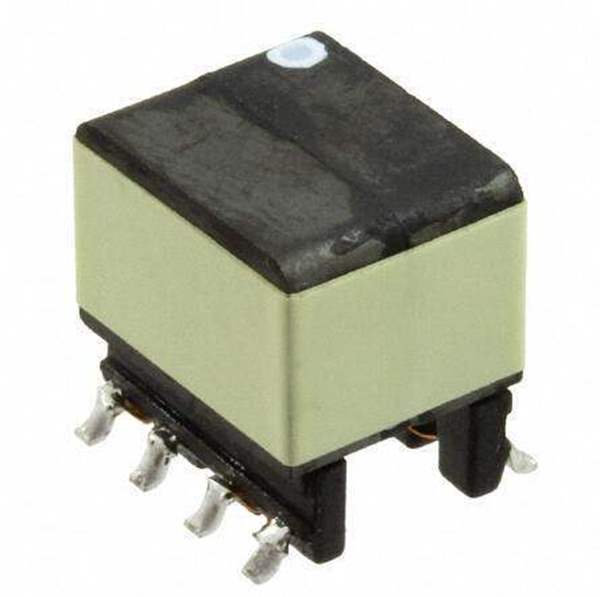

760301304

Part No 760301304
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description XFRMR GATE DRIVE SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Pulse Transformers
Product Status Active
Transformer Type Gate Drive
Inductance 1.08mH
ET (Volt-Time) 120VµS
Mounting Type Surface Mount
Size / Dimension 0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max) 0.433" (11.00mm)
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1210791-760301304
Ultra Librarian 3D Model Ultra Librarian 760301304 CAD Model

Description

1.08mH Gate Drive Pulse Transformer 2.5:1:1 Surface Mount
