Same model may have multiple batches, images only for reference.

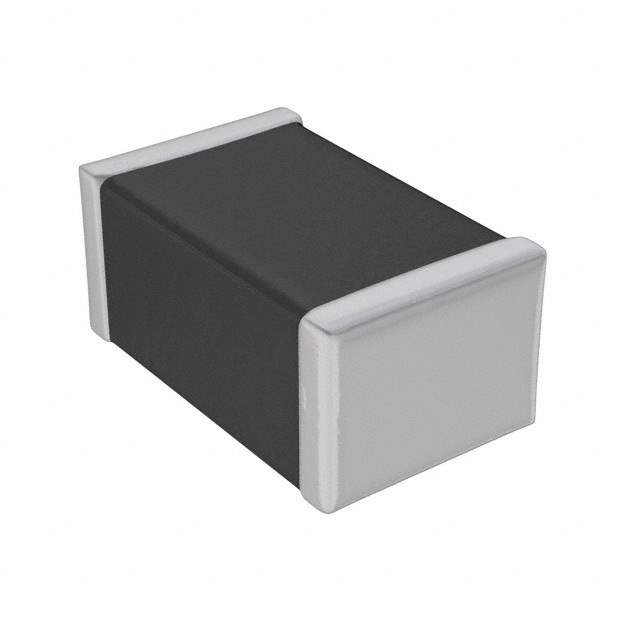

782631182 Real Image
Same model may have multiple batches, images only for reference.

782631182

Part No 782631182
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1.8 KOHM 0603 1LN / 1.8 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 100mA 750mOhm
Datasheet
782631182 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1.8 kOhms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 750mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0603 (1608 Metric)
Mounting Surface Mount
Height (Max) 0.039" (1.00mm)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-6695-1,732-6695-6,732-6695-2
Standard Package 4,000
Win Source Part Number 1328102-782631182
Ultra Librarian 3D Model Ultra Librarian 782631182 CAD Model

Description

The 1328102-782631182 ferrite chip bead from Würth Elektronik is a signal line filter that is AEC-Q200 rated.

  • Filter Type: Signal Line
  • AEC-Q200 Rated: Yes
  • Current Rating: 100mA (Max)
  • Impedance: 1.8 kOhms @ 100 MHz
  • Packaging: Reel
  • Mounting Type: Surface Mount
  • Standard Package: 4,000
  • Size/Dimension: 0.063 inches long and 0.032 inches wide (1.60mm x 0.80mm)
  • Height: 0.039 inches (1.00mm)
  • Number of Lines: 1
  • DC Resistance: 750mOhm
  • Temperature Range: -55°C to 125°C
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
