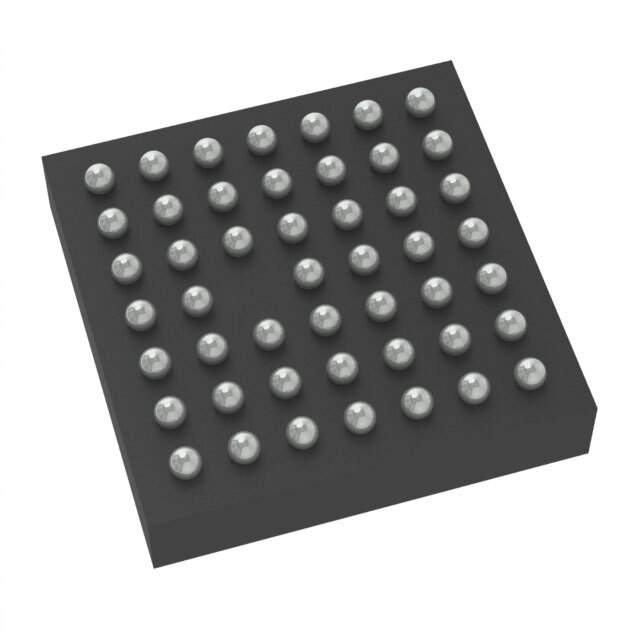

XC9536XL-10CSG48C Real Image
Same model may have multiple batches, images only for reference.

XC9536XL-10CSG48C

Part No XC9536XL-10CSG48C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description CPLD XC9500 Family 800 Gates 36 Macro Cells 100MHz 0.35um, CMOS Technology 3.3V 48-Pin CSBGA / IC CPLD 36MC 10NS 48CSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Active
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 3 V to 3.6 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 36
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 48-CSBGA (7x7)
Win Source Part Number 088599-XC9536XL-10CSG48C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC95216
Introduction Date May 01, 1996
ECCN EAR99
Country of Origin Philippines, Singapore, Republic of Korea, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian XC9536XL-10CSG48C CAD Model

Description

The XC9536XL-10CSG48C is a programmable logic device manufactured by Xilinx Inc. It has a maximum delay time of 10.0ns and a voltage supply range of 3 V to 3.6 V.

  • Delay Time: 10.0ns
  • Voltage Supply: 3 V to 3.6 V
  • Gates: 800
  • Macrocells: 36
  • Type: in-system programmable
  • Program/Erase Cycles: 10K
  • Family: XC95216
  • Package: 48-CSBGA (7x7)
  • Supply and Demand: limited
  • EOL Date: 2026
  • Halogen-Free: compliant
