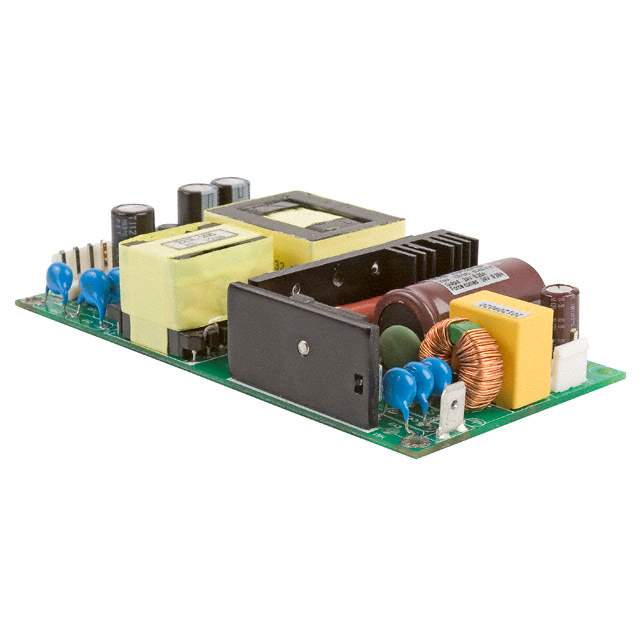

ECP225PS12 Real Image
Same model may have multiple batches, images only for reference.

ECP225PS12

Part No ECP225PS12
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 12V 150W / Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Datasheet
ECP225PS12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series ECP (225W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 18.75 A
Power (Watts) 150W (225W Forced Air)
Applications ITE (Commercial) , Medical
Voltage - Isolation 4 kV
Efficiency 93%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.00" L x 2.50" W x 1.00" H (127.0mm x 63.5mm x 25.4mm)
Approval Agency CB, CE
Standard Number 62368-1
Minimum Load Required No
Base Product Number ECP225
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1349080-ECP225PS12
Ultra Librarian 3D Model Ultra Librarian ECP225PS12 CAD Model

Description

The ECP225PS12 is a high-quality power supply from XP Power.

  • Type: Universal Input, Open Frame
  • Application: ITE (Commercial) and Medical
  • Features: Adjustable Output
  • Voltage Input: 85 to 264 VAC
  • Voltage Isolation: 4 kV
  • Output Voltage: 12V
  • Power Output: 150W (225W Forced Air)
  • Efficiency: 93%
  • Mounting Type: Chassis Mount
  • Temperature Range: -20°C to 70°C (with derating)
  • Approvals: CB, CE
  • Standard Number: 62368-1
