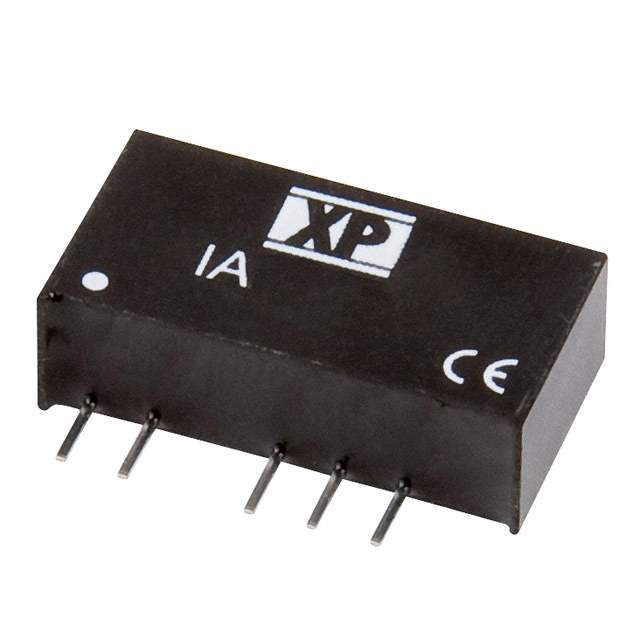

Same model may have multiple batches, images only for reference.

IA1212S

Name: IA1212S
Brand: XP Power
SKU: 1182724
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IA1212S
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA 10.8V - 13.2V Input
Datasheet	IA1212S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	XP Power
Series	IA (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	5-SIP Module
Dimension	0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
Standard Number	62368-1
Base Product Number	IA1212
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1470-1360-5
Standard Package	20
Win Source Part Number	1182724-IA1212S
Ultra Librarian 3D Model	Ultra Librarian IA1212S CAD Model

Alternative Products

Description

The IA (1W) isolated module DC DC converter is a power supply device used in ITE (Commercial) applications.

Application: ITE (Commercial)
Voltage Isolation: 1 kV
Output Current (Maximum): 42mA
Voltage Input: 10.8V to 13.2V
Voltage Output 1: 12V
Voltage Output 2: -12V
Efficiency: 78%
Mounting Type: Through Hole
Operating Temperature: -40°C to 85°C
Dimensions: 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
