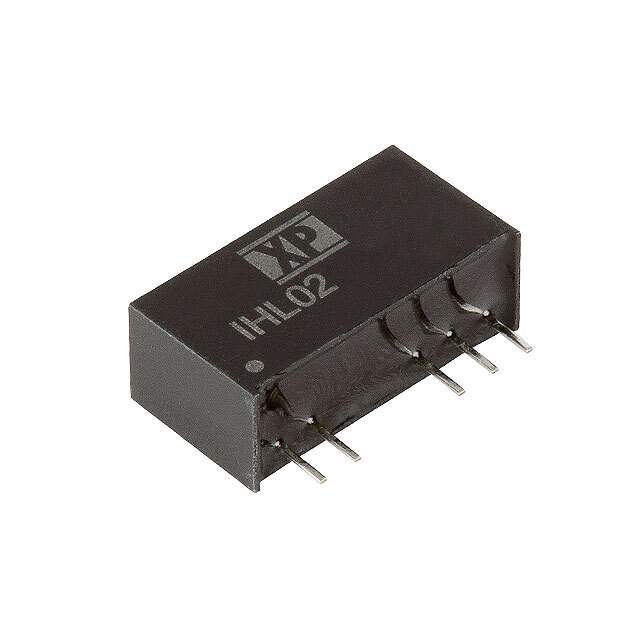

Same model may have multiple batches, images only for reference.

IHL0212D1509

Name: IHL0212D1509
Brand: XP Power
SKU: 1349030
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IHL0212D1509
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V -9V 2W / Isolated Module DC DC Converter 2 Output 15V -9V 66.7mA, 111mA 10.8V - 13.2V Input
Datasheet	IHL0212D1509 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IHL02 (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-9V
Current - Output (Max)	66.7mA, 111mA
Power (Watts)	2 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 95°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Base Product Number	IHL0212
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349030-IHL0212D1509
Ultra Librarian 3D Model	Ultra Librarian IHL0212D1509 CAD Model

Alternative Products

Description

The IHL02 (2W) series from XP Power is a type of isolated module that functions as a power supply board mount DC DC converter. XP Power IHL02 (2W) series is a type of isolated module.

Series: IHL02 (2W)
Type: Isolated Module DC DC Converter
Feature: SCP
Package: Tube
Size: 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Power Output: 2 W
Outputs: Two (66.7mA and 111mA)
Voltage Isolation: 5.2 kV
Voltage Input: 10.8V to 13.2V
Voltage Output (Output 1): 15V
Voltage Output (Output 2): -9V
Efficiency: 80%
Mounting: Through-Hole
Application: ITE (Commercial)
