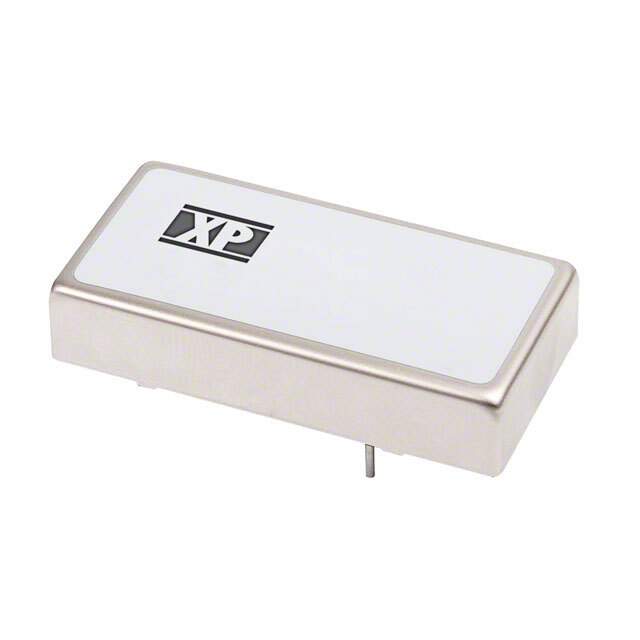

Same model may have multiple batches, images only for reference.

JCK3024D15

Name: JCK3024D15
Brand: XP Power
SKU: 1339178
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JCK3024D15
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 18V - 36V Input
Datasheet	JCK3024D15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCK (30W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	1A, 1A
Power (Watts)	30 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	JCK3024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1339178-JCK3024D15
Ultra Librarian 3D Model	Ultra Librarian JCK3024D15 CAD Model

Description

The JCK3024D15 isolated module is a DC-DC converter with remote on/off, OCP, OVP, SCP, and UVLO features manufactured by XP Power.

Features: Remote On/Off, OCP, OVP, SCP, UVLO
Application: ITE (Commercial)
Power (Watts): 30W
Voltage Isolation: 1.6 kV
Number of Outputs: 2
Output 1: 1A, 15V
Output 2: 1A, -15V
Efficiency: 91%
Operating Temperature: -40°C to 100°C
Availability: in the open market
Packaging: Tube
