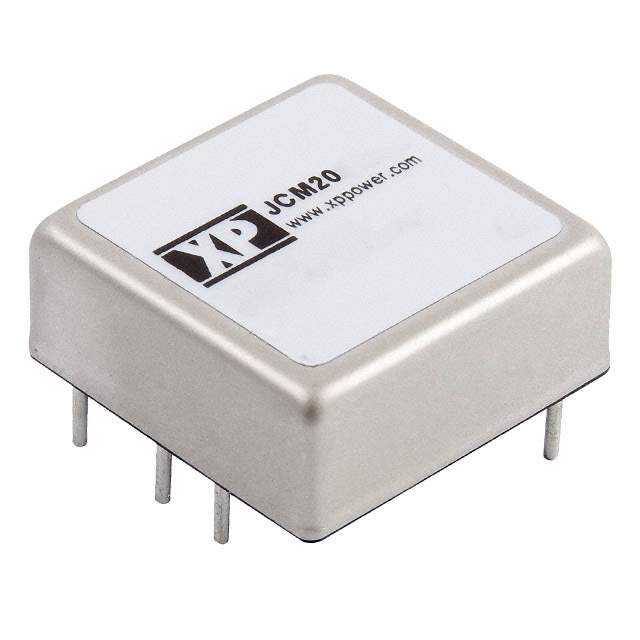

JCM2024S05

Name: JCM2024S05
Brand: XP Power
SKU: 1350142
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCM2024S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 18V - 36V Input
Datasheet	JCM2024S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCM (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JCM2024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350142-JCM2024S05
Ultra Librarian 3D Model	Ultra Librarian JCM2024S05 CAD Model

Alternative Products

Description

The XP Power JCM2024S05 is a 20W isolated module DC-DC converter.

Feature: Remote On/Off
Protection Features: Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP)
Maximum Output Current: 4A
Voltage Input Range: 18V to 36V
Voltage Output: 5V
Efficiency: 89%
Mounting Type: Through Hole
Package / Case: 6-DIP Module
Dimensions: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Operating Temperature: -40°C to 105°C
