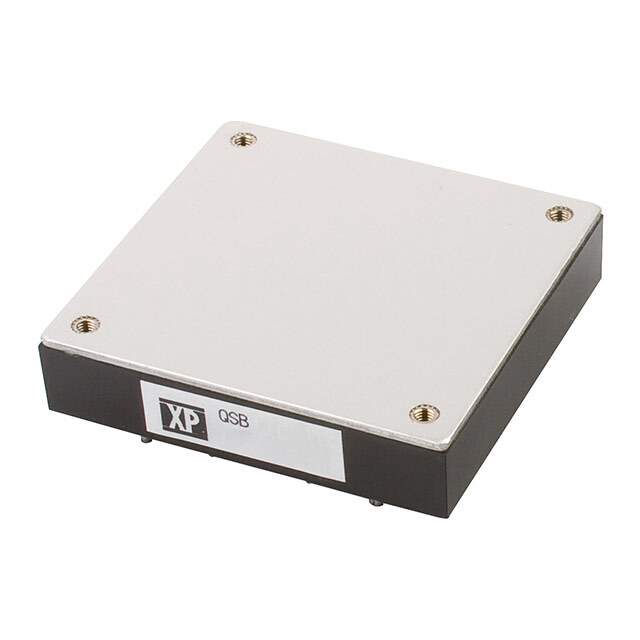

QSB30024S24 Real Image
Same model may have multiple batches, images only for reference.

QSB30024S24

Part No QSB30024S24
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 300W / Isolated Module DC DC Converter 1 Output 24V 12.5A 9V - 36V Input
Datasheet
QSB30024S24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series QSB (300W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 12.5A
Power (Watts) 300 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 88%
Mounting Type Through Hole
Package / Case Half Brick
Size / Dimension 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
Control Features Enable, Active High
Base Product Number QSB30024
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339942-QSB30024S24
Ultra Librarian 3D Model Ultra Librarian QSB30024S24 CAD Model

Description

The QSB (300W) series isolated module DC-DC converter is a high-performance power supply product manufactured by XP Power.

  • Power Rating: 300 W
  • Current Output: 12.5A
  • Efficiency: 88 percent
  • Application: ITE (Commercial)
  • Package: Box
  • Dimensions: 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
  • Features: Remote On/Off, OCP, OTP, OVP, SCP control features
  • Voltage Isolation: 1.5 kV
