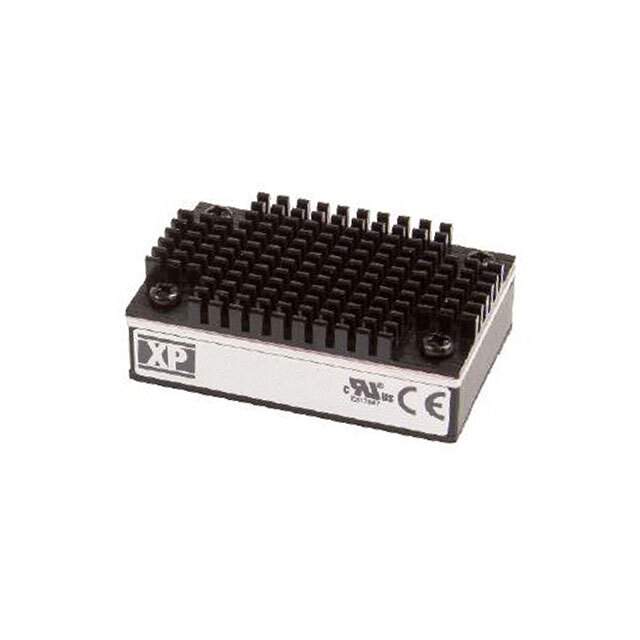

Same model may have multiple batches, images only for reference.

RCQ75110S12

Name: RCQ75110S12
Brand: XP Power
SKU: 1336928
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RCQ75110S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.25A 66V - 160V Input
Datasheet	RCQ75110S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	RCQ (50W)
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	66V
Voltage - Input (Max)	160V
Voltage - Output 1	12V
Current - Output (Max)	6.25A
Power (Watts)	75 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial) , Railway
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 35°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	RCQ75110
Standard Package	5
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1336928-RCQ75110S12
Ultra Librarian 3D Model	Ultra Librarian RCQ75110S12 CAD Model

Description

The XP Power RCQ series is a high-performance isolated module DC-DC converter.

Features: Remote on/off control, active high control
Voltage Isolation: 3 kV
Applications: ITE (Commercial) and Railway
Power Output: 75 W
Efficiency: 91%
Mounting Type: Through-Hole
Package/Case: 8-DIP Module
Temperature Range: -40°C to 35°C
ECCN: EAR99
