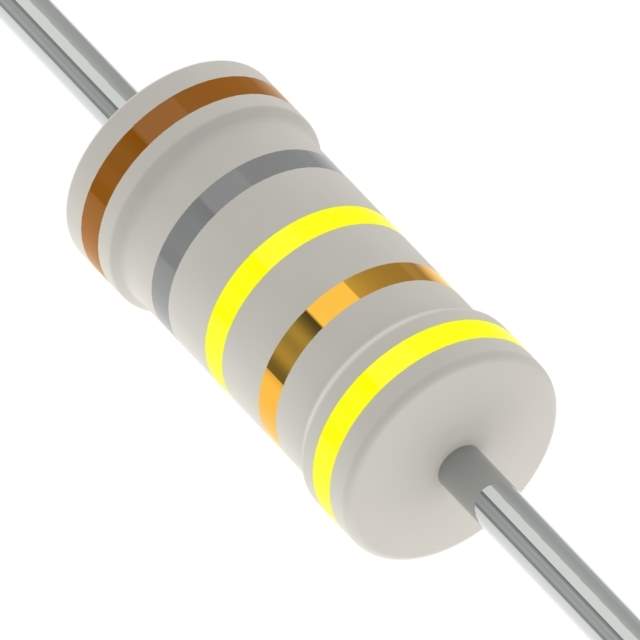

The HHV100JR-73-180K is a carbon film through-hole resistor manufactured by Yageo. It's designed for general-purpose applications in electronic circuits where a specific resistance value is required. The part number encodes information about the resistor's power rating, tolerance, temperature coefficient, and resistance value.

Applications

• General electronic circuits: Used in a wide range of electronic devices, from consumer electronics to industrial equipment.
• Current limiting: Used to limit current flow in circuits to protect components.
• Voltage division: Used in voltage divider circuits to reduce voltage levels.
• Pull-up and pull-down resistors: Used in digital circuits to define logic levels.
• RC timing circuits: Used in conjunction with capacitors to create timing circuits.

Features

• Carbon film construction: Provides a stable resistance value.
• Through-hole mounting: Easy to install and solder onto PCBs.
• Wide resistance range: Available in a variety of resistance values.
• Flameproof coating: Enhances safety in case of overload conditions.
• RoHS compliant: Meets environmental regulations regarding hazardous substances.

Benefits

• Cost-effective: Provides a low-cost solution for resistance requirements.
• Easy to use: Simple to install and integrate into circuits.
• Reliable performance: Offers stable and consistent operation.
• Enhanced safety: Flameproof coating protects against fire hazards.
• Environmentally friendly: RoHS compliance demonstrates commitment to environmental responsibility.

Additional Details

The specific parameters of the HHV100JR-73-180K resistor can be decoded from the part number. HHV100 indicates a certain physical size/power rating, 'JR' specifies a 5% tolerance, '-73-' typically relates to the packaging (tape and reel), and '180K' denotes a resistance of 180 kilohms. Carbon film resistors typically have a limited temperature coefficient, which means their resistance value can vary slightly with temperature changes. Always refer to the manufacturer's datasheet for detailed electrical and mechanical specifications, including power rating, tolerance, temperature coefficient, and operating temperature range.
