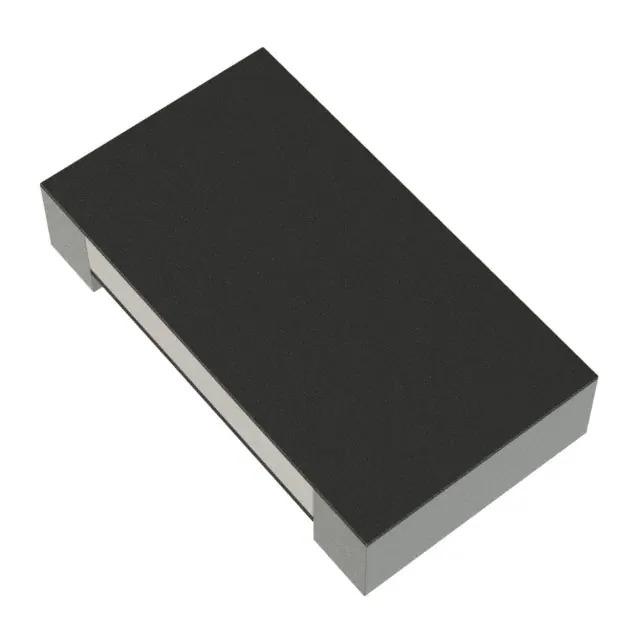

Same model may have multiple batches, images only for reference.

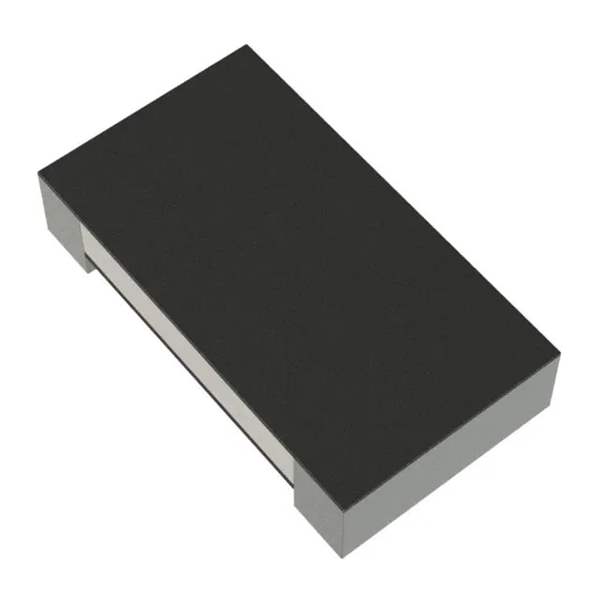

PA0805FRE470R018L Yageo
Same model may have multiple batches, images only for reference.

PA0805FRE470R018L

Part No PA0805FRE470R018L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.018 OHM 1% 1/2W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PA
Package Tape & Reel
Product Status Active
Resistance 18 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375206-PA0805FRE470R018L
Ultra Librarian 3D Model Ultra Librarian PA0805FRE470R018L CAD Model

Description

The PA0805FRE470R018L is a chip resistor designed for surface mount applications.

  • Series: PA
  • Manufacturer: YAGEO
  • Resistance: 18 mOhms
  • Tolerance: ±1%
  • Type: Metal element
  • Power Rating: 0.5W (1/2W)
  • Applications: Automotive AEC-Q200, current sense, and moisture resistant
  • Operating Temperature: -55°C to 155°C
  • Height: 0.018" (0.45mm)
  • REACH Compliance: Unaffected
  • ECCN: EAR99
  • Packaging: Tape and reel
