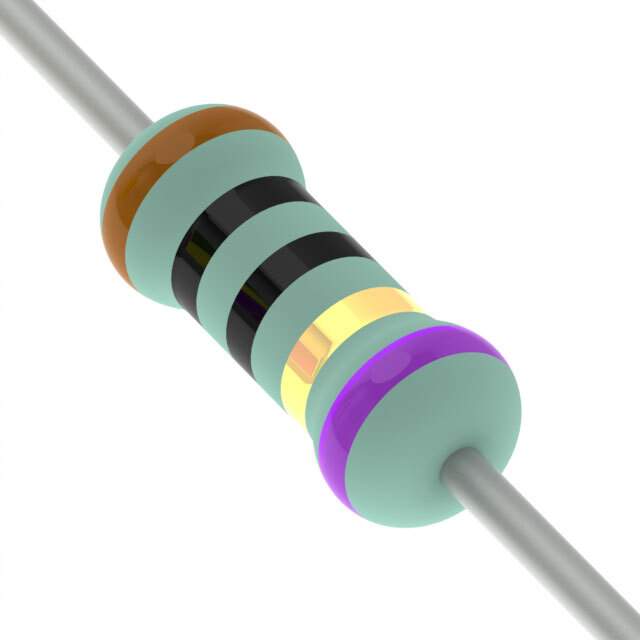

Same model may have multiple batches, images only for reference.

PNP3WVJT-73-10R

Name: PNP3WVJT-73-10R
Brand: Yageo
SKU: 993325
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PNP3WVJT-73-10R
Manufacturer	Yageo
Catalog	Through Hole Resistors
Description	RES 10 OHM 5% 3W AXIAL / 10 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	YAGEO
Series	PNPV
Package	Tape & Box (TB)
Resistance	10 Ohms
Tolerance	±5%
Power (Watts)	3W
Composition	Wirewound
Features	Flame Retardant Coating, Safety
Temperature Coefficient	±300ppm/°C
Temperature Range - Operating	-40°C ~ 200°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.217" Dia x 0.512" L (5.50mm x 13.00mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0080
Standard Package	1,000
Win Source Part Number	993325-PNP3WVJT-73-10R
Ultra Librarian 3D Model	Ultra Librarian PNP3WVJT-73-10R CAD Model

Alternative Products

Description

The YAGEO PNP3WVJT-73-10R is a through-hole resistor that belongs to the PNPV series. YAGEO manufactures this component.

Series: PNPV
Coating: Flame-Retardant
Safety Features: Yes
Packaging: Tape and Box
Standard Package: 1,000
Tolerance: ±5%
Temperature Coefficient: ±300ppm/°C
Power Rating: 3W
Composition: Wirewound
Resistance: 10 Ohms
Package/Case: Axial
Supplier Device Package: Axial
Temperature Range: -40°C to 200°C
