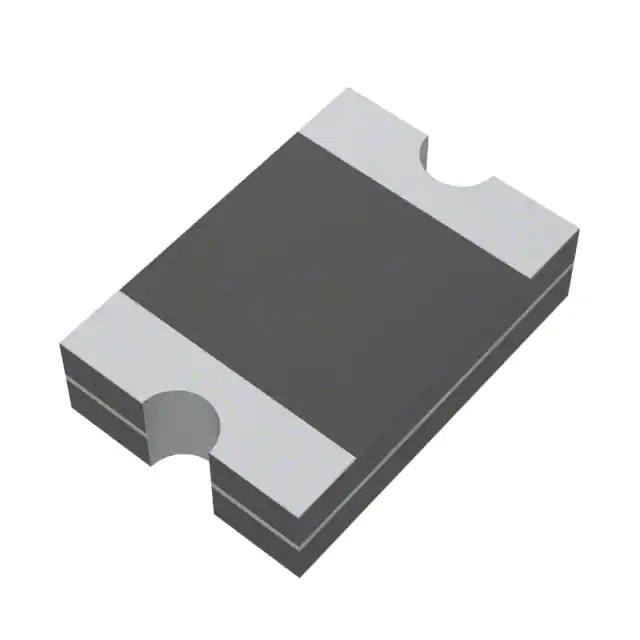

SMD1210B110TFT Yageo
Same model may have multiple batches, images only for reference.

SMD1210B110TFT

Part No SMD1210B110TFT
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B110TFT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1210
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 8V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 100 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) -
Thickness (Max) 0.033" (0.85mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361766-SMD1210B110TFT
Ultra Librarian 3D Model Ultra Librarian SMD1210B110TFT CAD Model

Description

The SMD1210B110TFT is a PTC resettable fuse from YAGEO.

  • Series: SMD1210
  • Mounting Type: Surface Mount
  • Fuse Type: Polymeric PTC Resettable Fuse
  • Maximum Current Rating: 100A
  • Voltage Rating: 8V
  • Current Hold (Ih): 1.1A
  • Current Trip (It): 2.2A
  • Time to Trip: 300ms
  • Resistance (min): 50mOhms
  • Resistance (max): 210mOhms
  • Approvals: cUL, TUV, UL
